DSP series
DSP series comes with an innovative ventilation system characterized by a reversed airflow that avoids pushing warm air towards the tank. Made with UL compliant materials, supports you in reaching worldwide markets.

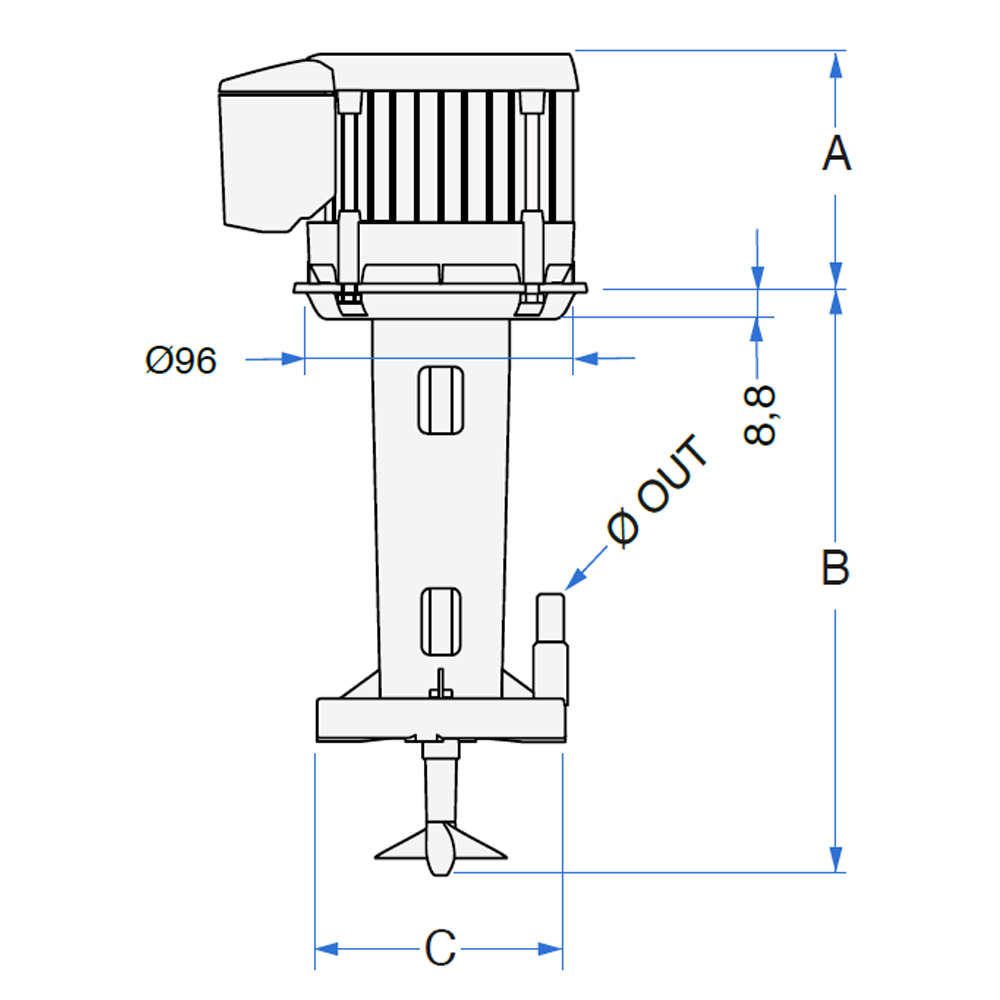

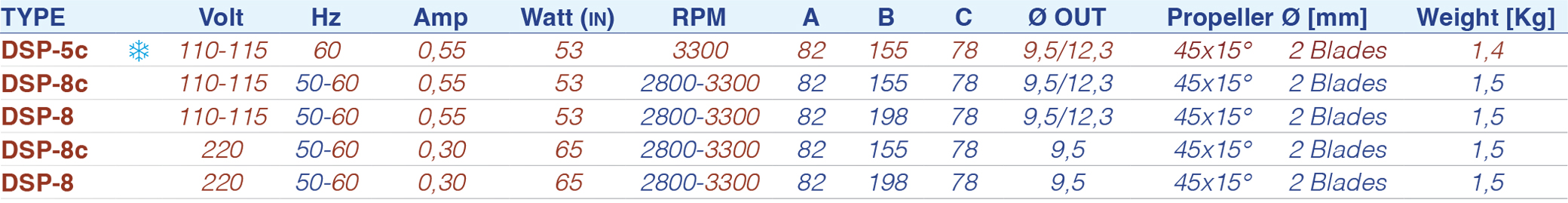

| TYPE | Volt | Hz | Amp | Watt (IN) | RPM | A | B | C | Ø OUT | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DSP-5c ❄︎ | 110-115 | 60 | 0,55 | 53 | 3300 | 82 | 155 | 78 | 9,5/12,3 | 45x15° 2 Blades | 1,4 |
| DSP-8c | 110-115 | 50-60 | 0,55 | 53 | 2800-3300 | 82 | 155 | 78 | 9,5/12,3 | 45x15° 2 Blades | 1,5 |
| DSP-8 | 110-115 | 50-60 | 0,55 | 53 | 2800-3300 | 82 | 198 | 78 | 9,5/12,3 | 45x15° 2 Blades | 1,5 |
| DSP-8c | 220 | 50-60 | 0,30 | 65 | 2800-3300 | 82 | 155 | 78 | 9,5 | 45x15° 2 Blades | 1,5 |
| DSP-8 | 220 | 50-60 | 0,30 | 65 | 2800-3300 | 82 | 198 | 78 | 9,5 | 45x15° 2 Blades | 1,5 |

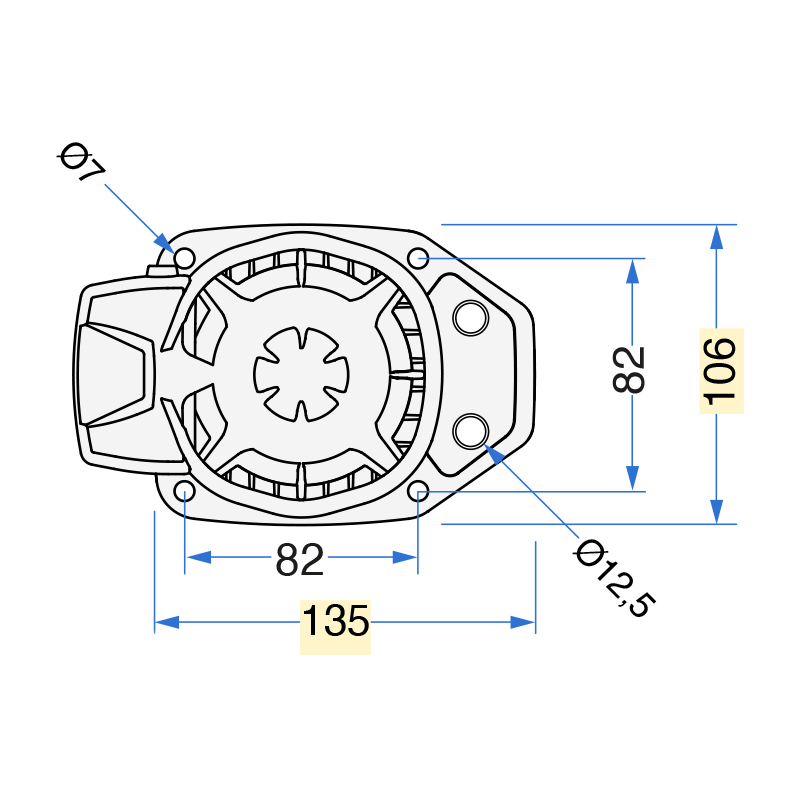

Available FIXING PLATES
141×110 mm
Fixing plates
141×110 mm JG
Fixing plates

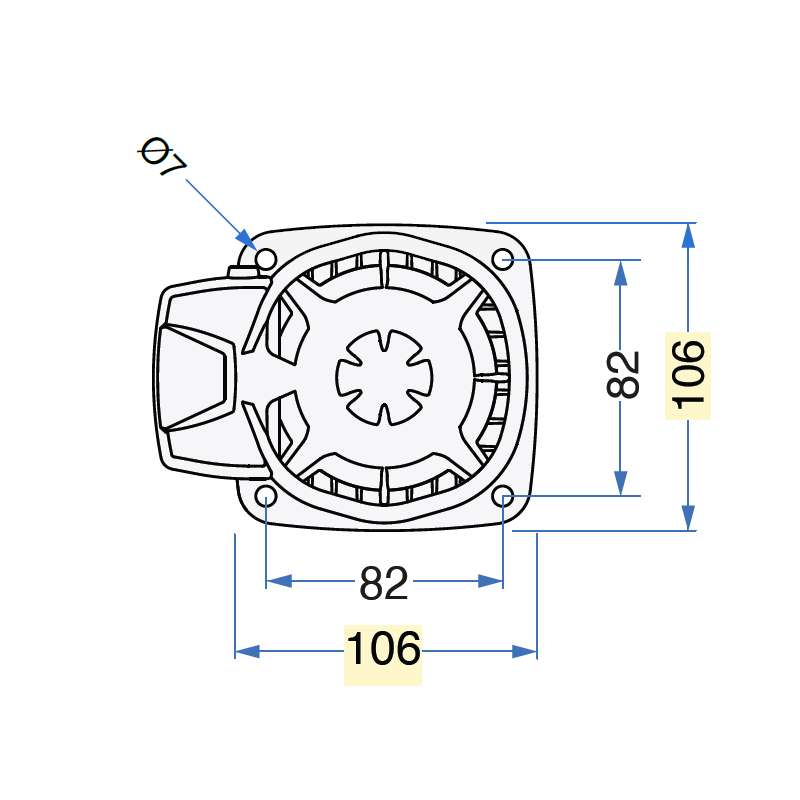

106×106 mm
Fixing plates
106×106 mm JG
Fixing plates
150×120 mm
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)
FASTON PLUG
Made with UL compliant materials
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm (12 mm optional) NSK /SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature complying to UL regulation.
Cooling system: Air cooled pump with a suction speed of 3,1 m/s.
Water connection: Compatible with John Guest fittings.
Operation: Power supply 110-115 or 220 Volts – 24 hours a day non stop. Clean non drinkable water only
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: PATENTED device. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
