SR-30
SR-30 series is a long-life reliable solution for your needs. Its robust aluminum design embeds a powerful motor able to carry our greatest propellers and satisfy the most demanding performance.

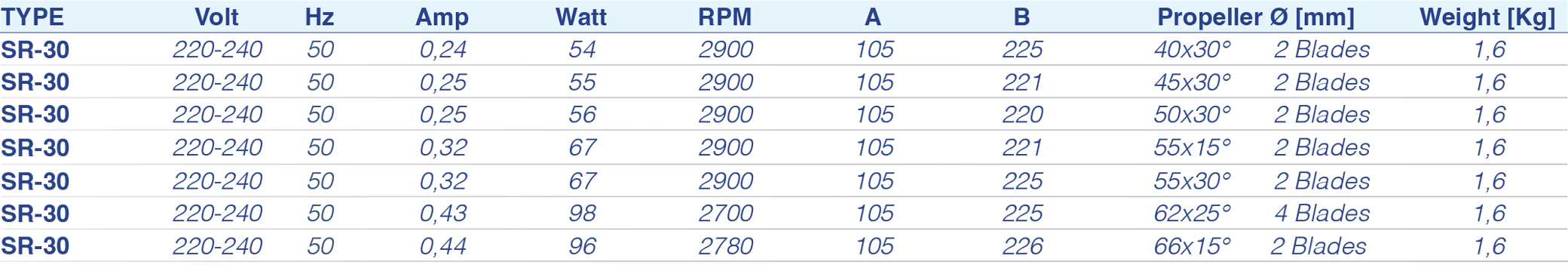

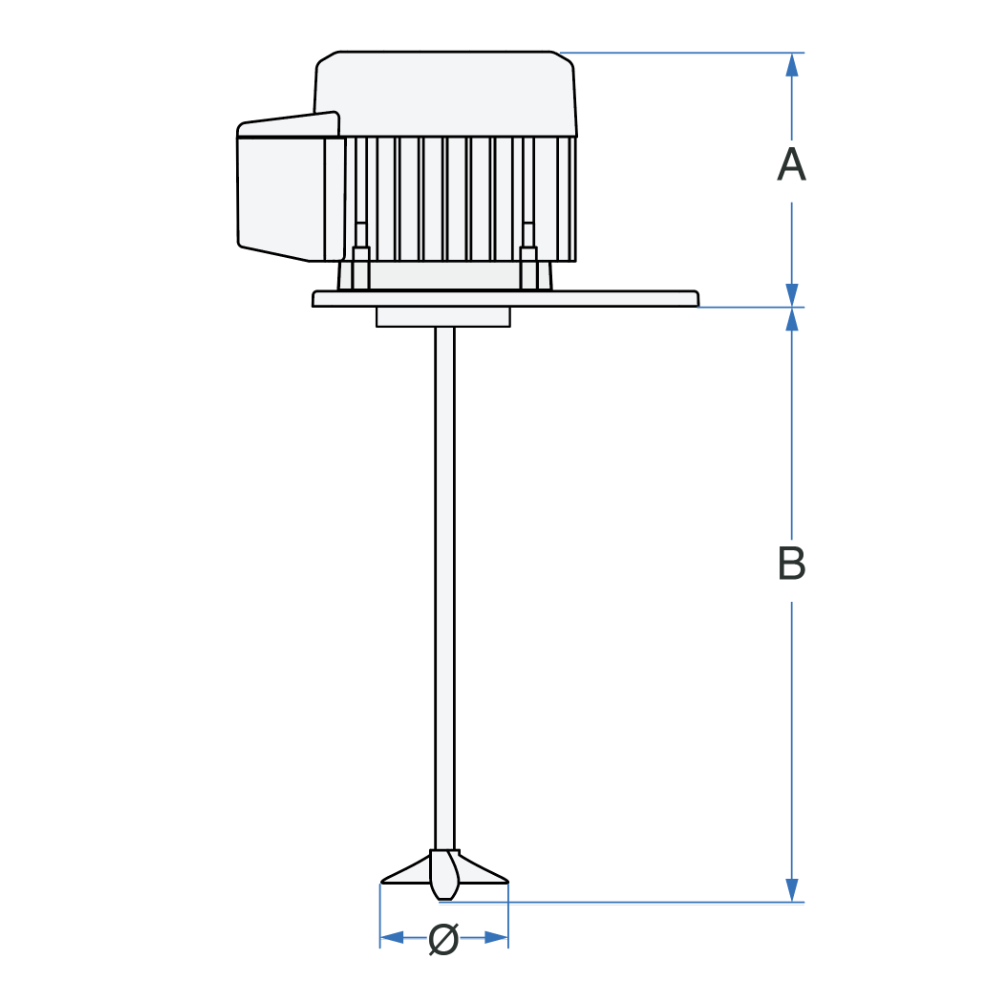

| TYPE | Volt | Hz | Amp | Watt | RPM | A | B | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|
| SR-30 | 220-240 | 50 | 0,24 | 54 | 2900 | 105 | 225 | 40x30° 2 Blades | 1,6 |
| SR-30 | 220-240 | 50 | 0,25 | 55 | 2900 | 105 | 221 | 45x30° 2 Blades | 1,6 |
| SR-30 | 220-240 | 50 | 0,25 | 56 | 2900 | 105 | 220 | 50x30° 2 Blades | 1,6 |
| SR-30 | 220-240 | 50 | 0,32 | 67 | 2900 | 105 | 221 | 55x15° 2 Blades | 1,6 |
| SR-30 | 220-240 | 50 | 0,32 | 67 | 2900 | 105 | 225 | 55x30° 2 Blades | 1,6 |
| SR-30 | 220-240 | 50 | 0,43 | 98 | 2700 | 105 | 225 | 62x25° 4 Blades | 1,6 |
| SR-30 | 220-240 | 50 | 0,44 | 96 | 2780 | 105 | 226 | 66x15° 2 Blades | 1,6 |
Available FIXING PLATES

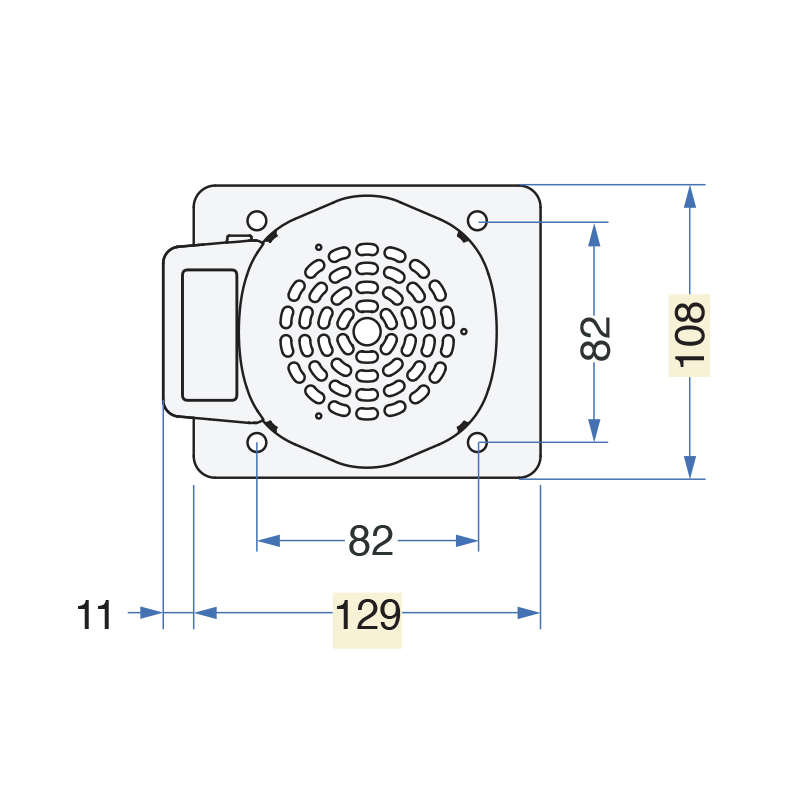

108×129 mm
Fixing plates

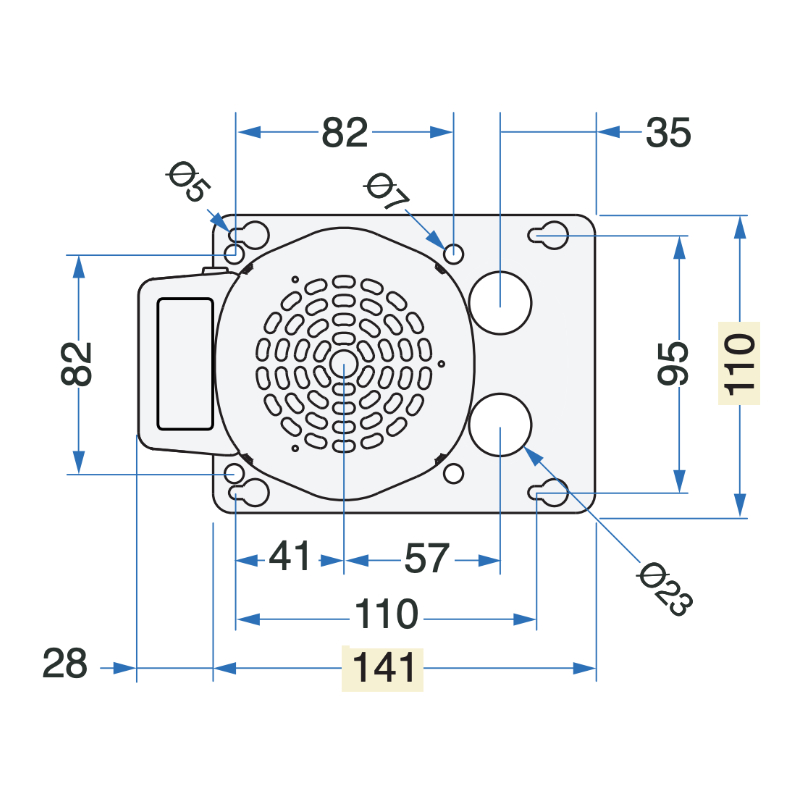

141×110 mm
Fixing plates
106×106 mm
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)
SCHUKO
More technical specifications:
Category: Classic AGITATOR.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 INOX steel.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 3,1 m/s.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
