SP series

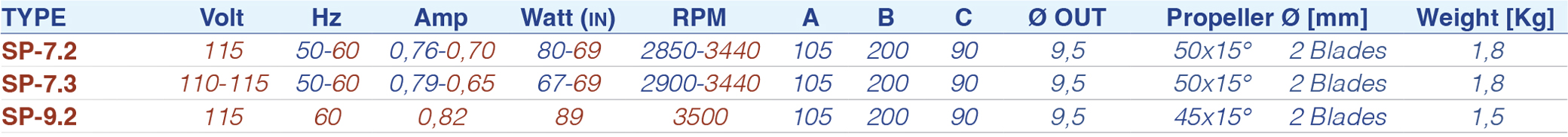

| TYPE | Volt | Hz | Amp | Watt (IN) | RPM | A | B | C | Ø OUT | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SP-7.2 | 115 | 50-60 | 0,76-0,70 | 80-69 | 2850-3440 | 105 | 200 | 90 | 9,5 | 50x15° 2 Blades | 1,8 |
| SP-7.3 | 110-115 | 50-60 | 0,79-0,65 | 67-69 | 2900-3440 | 105 | 200 | 90 | 9,5 | 50x15° 2 Blades | 1,8 |
| SP-9.2 | 115 | 60 | 0,82 | 89 | 3500 | 105 | 200 | 90 | 9,5 | 45x15° 2 Blades | 1,5 |
Available FIXING PLATES

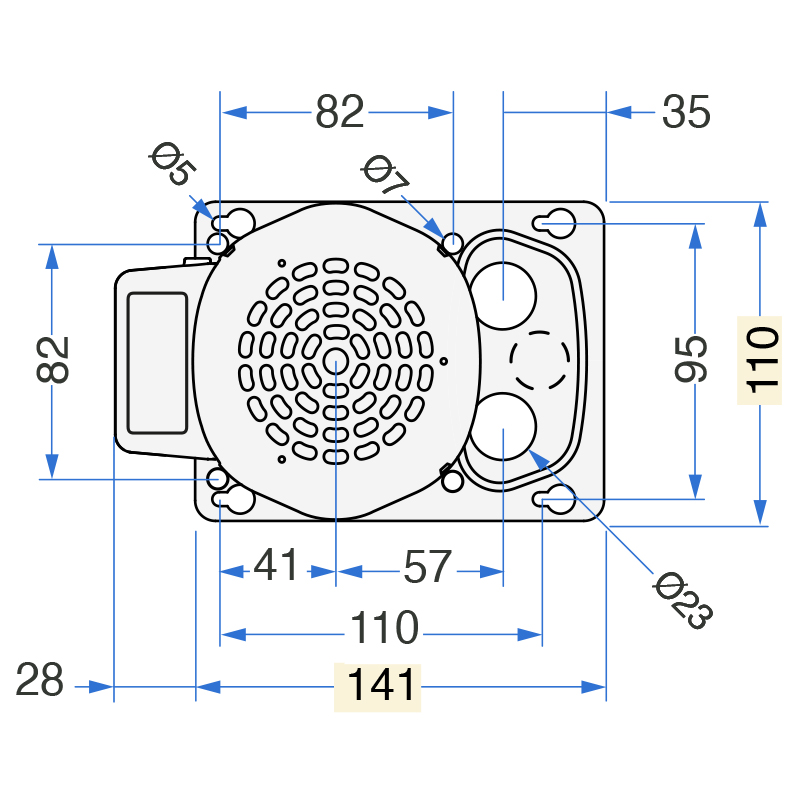

141×110 mm
Fixing plates

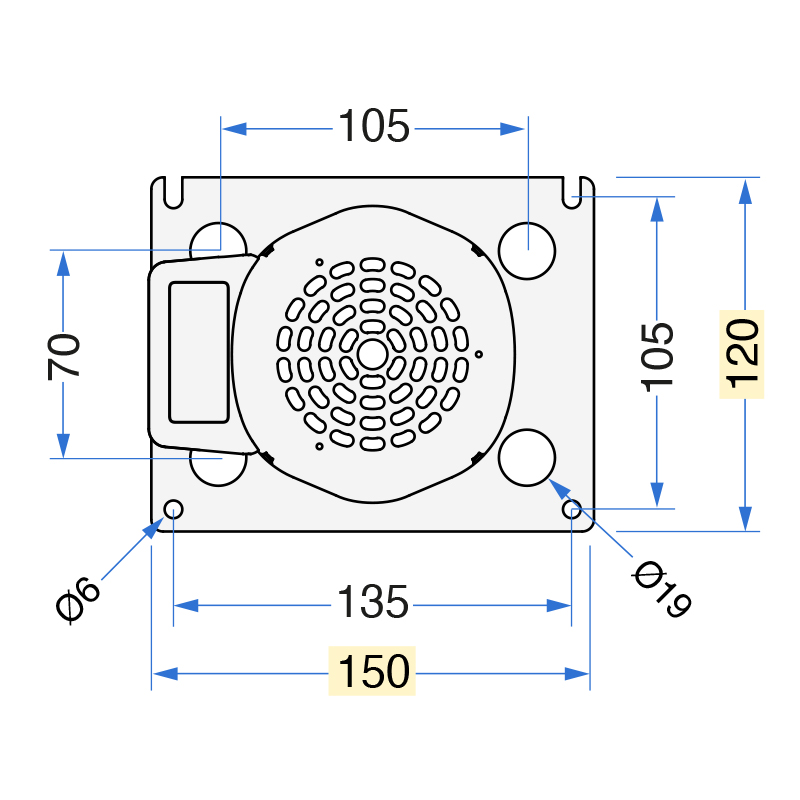

150×120 mm
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)
Made with UL compliant materials
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature complying to UL regulation.
Cooling system: Air cooled pump with a suction speed of 2,2 m/s.
Water connection: TRIPLE connection Ø 9,5 mm John Guest fittings.
Operation: Power supply 110 & 115 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Italian PATENTED component installed inside. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
