SP series
SP series, made with UL compliant materials, supports you reaching worldwide markets.
It offers you a long-life reliable solution for your needs with a wide range of versions designed for small and big refrigeration systems ensuring great performances.

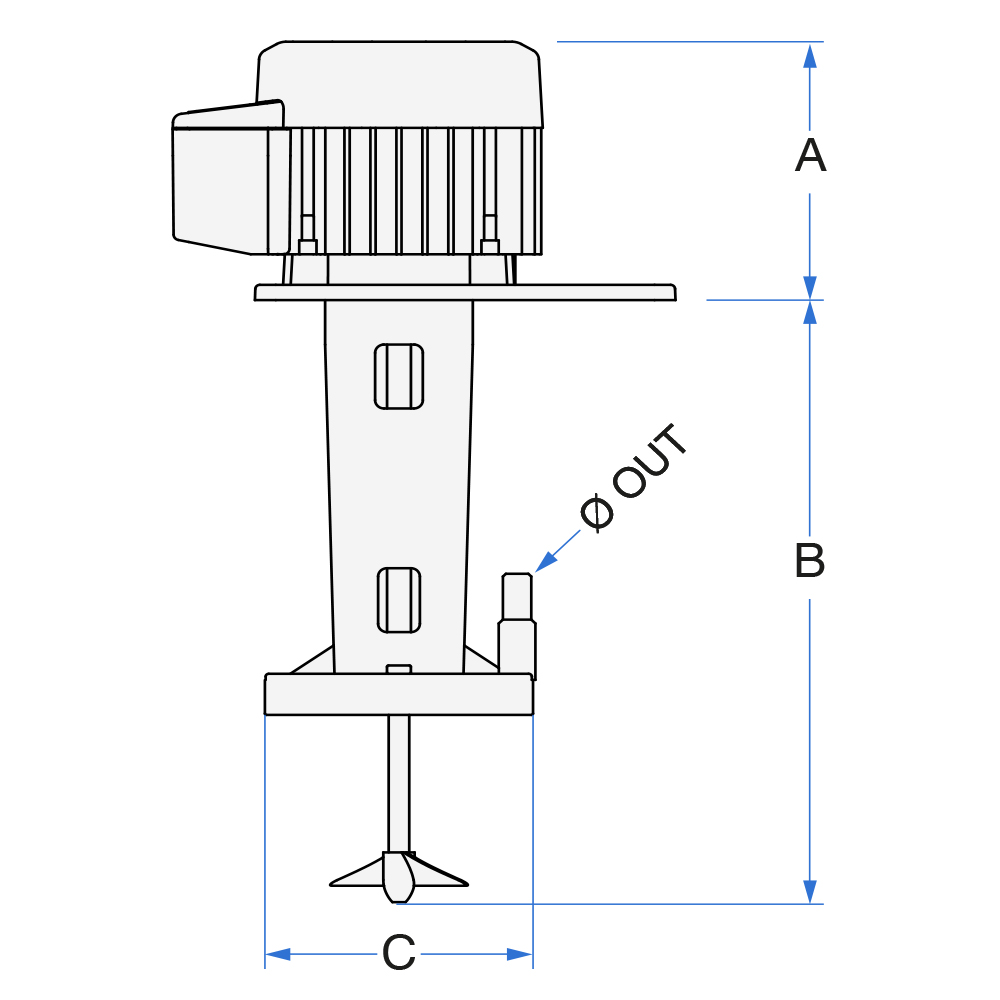

| TYPE | Volt | Hz | Amp | Watt (IN) | RPM | A | B | C | Ø OUT | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SP-9 | 110-115 | 50-60 | 0,60-0,57 | 56-62 | 2850-3300 | 90 | 185 | 78 | 9,5 | 50x15° 2 Blades | 1,5 |
| SP-12 | 110-115 | 50-60 | 0,82-0,77 | 73-72 | 2900-3400 | 105 | 220 | 90 | 9,5/12,3 | 50x15° 2 Blades | 1,8 |
| SP-19 | 110-115 | 60 | 1,35 | 113 | 3500 | 120 | 240 | 90 | 9,5/12,3 | 50x15° 2 Blades | 2,4 |
| SP-25 | 110-115 | 60 | 1,35 | 169 | 3450 | 140 | 240 | 90 | 9,5/12,3 | 50x15° 2 Blades | 3 |
| SP-9 | 220 | 50-60 | 0,31-0,28 | 63-66 | 2800-3300 | 90 | 185 | 78 | 9,5 | 50x15° 2 Blades | 1,5 |
| SP-12 | 220 | 50-60 | 0,37-0,32 | 67-71 | 2900-3450 | 105 | 220 | 90 | 9,5/12,3 | 50x15° 2 Blades | 1,8 |
| SP-19 | 220 | 60 | 0,49 | 107 | 3450 | 120 | 240 | 90 | 9,5/12,3 | 50x15° 2 Blades | 2,4 |
| SP-25 | 220 | 60 | 0,73 | 155 | 3450 | 140 | 240 | 90 | 9,5/12,3 | 50x15° 2 Blades | 3 |
Available FIXING PLATES

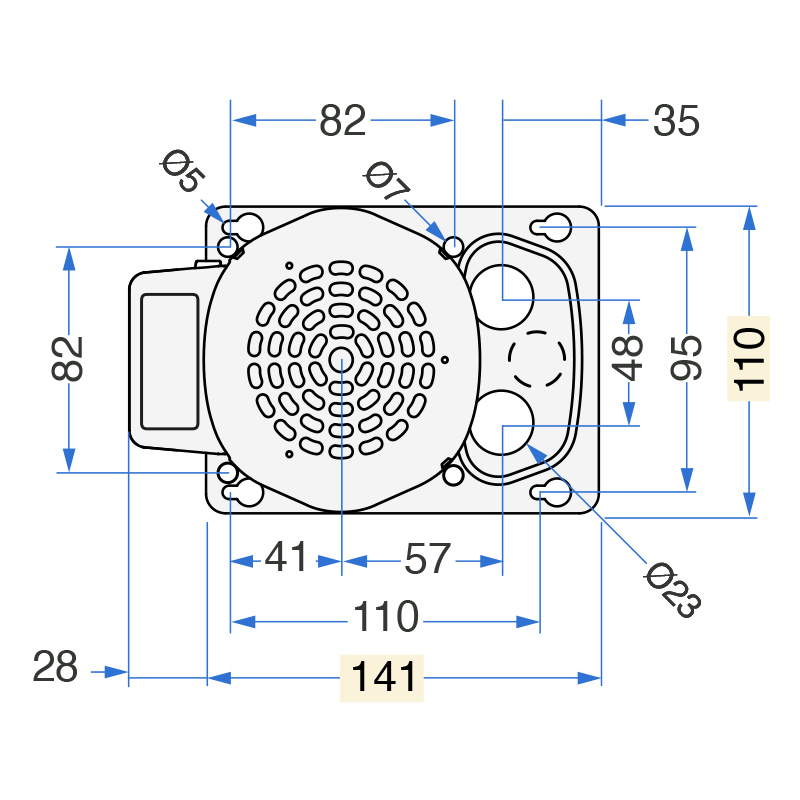

141×110 mm
Fixing plates

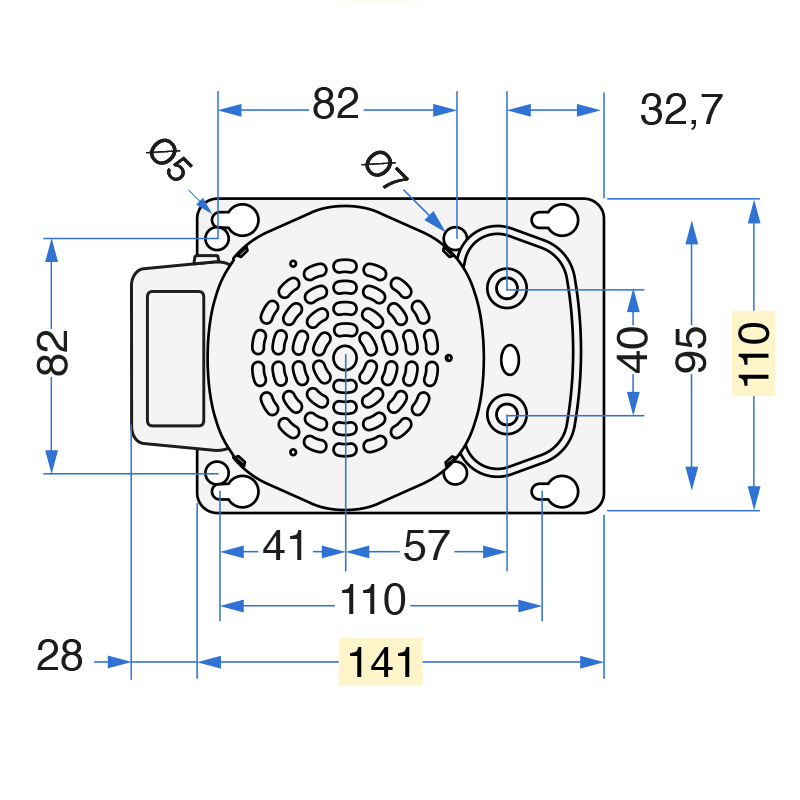

141×110 mm JG
Fixing plates

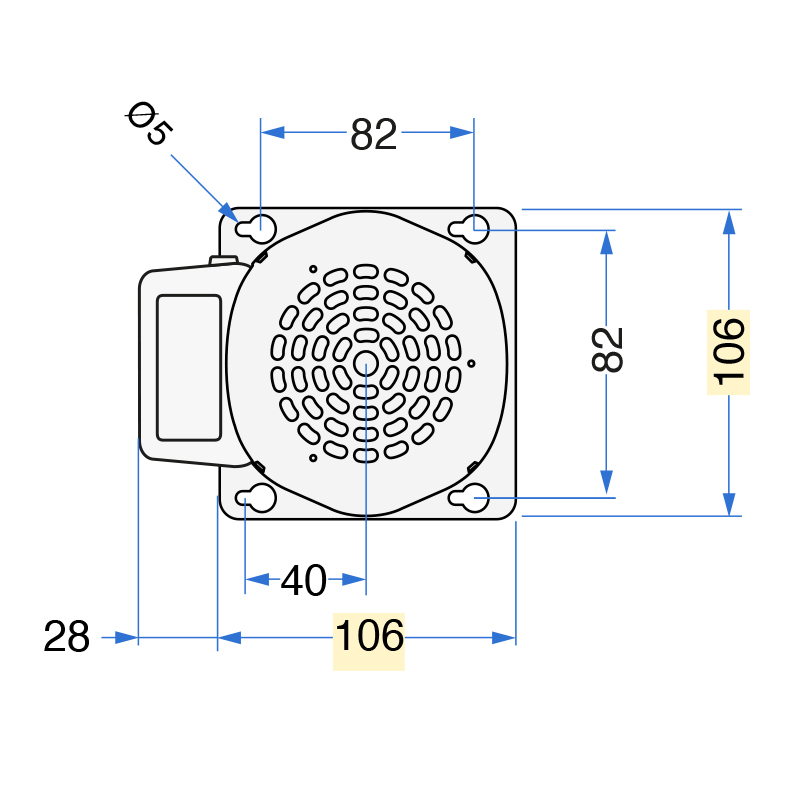

106×106 mm
Fixing plates

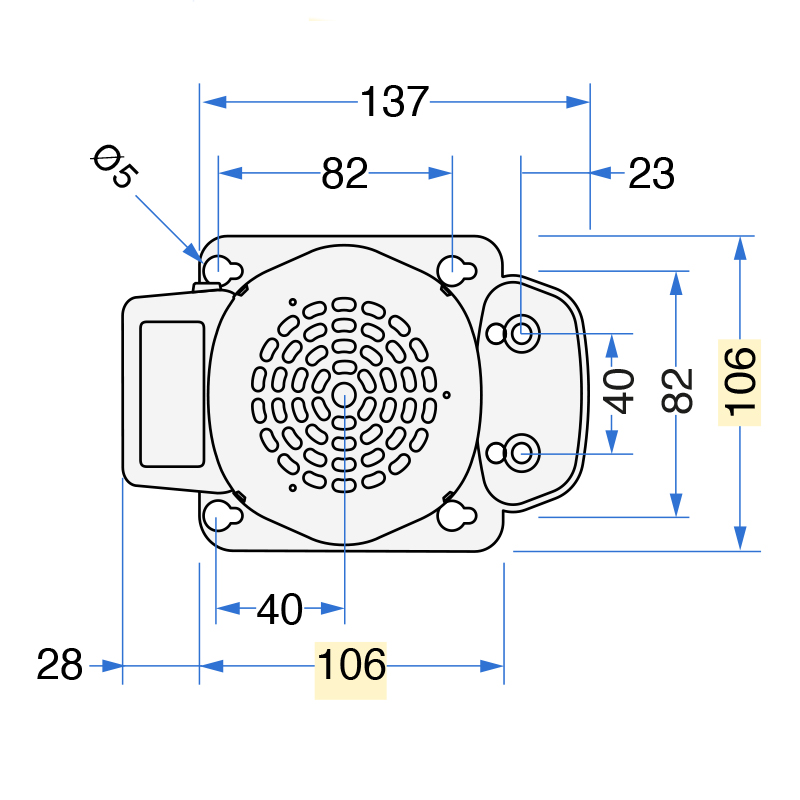

106×106 mm JG
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)

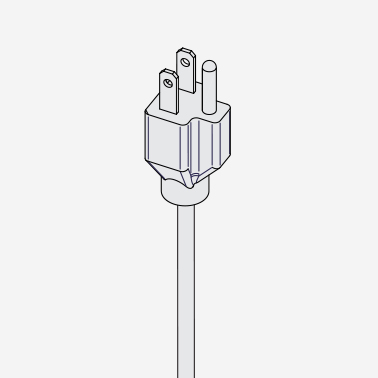

USA
Made with UL compliant materials
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature complying to UL regulation.
Cooling system: Air cooled pump with a suction speed of 2,2 m/s.
Water connection: Compatible with John Guest fittings.
Operation: Power supply 110-115 or 220 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives..
Note: Italian PATENTED component installed inside. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
