SK-20/30
SK series, made with UL compliant materials, is a long-life reliable solution that supports you in reaching worldwide markets. Its robust aluminum design and the wide range of configurations available makes it the perfect choice when great performance are required.

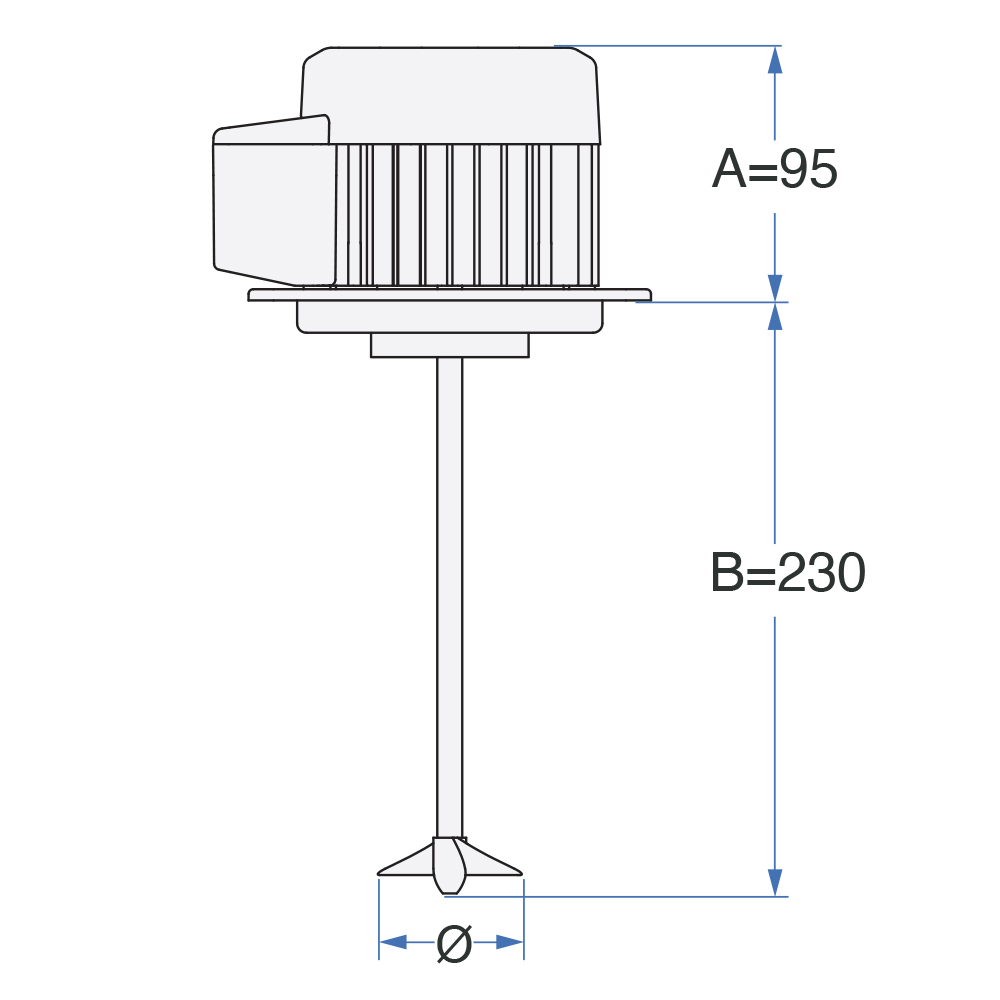

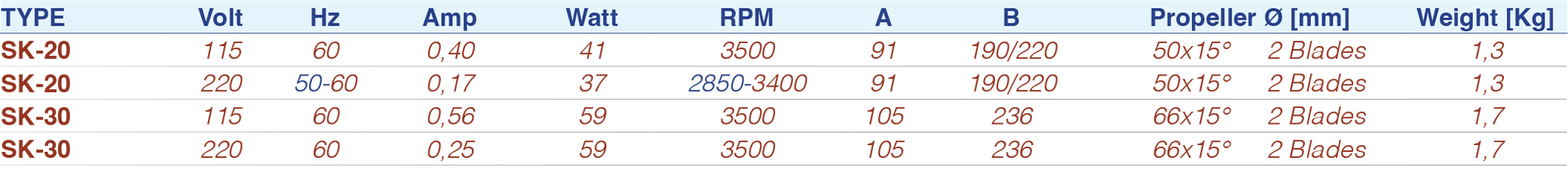

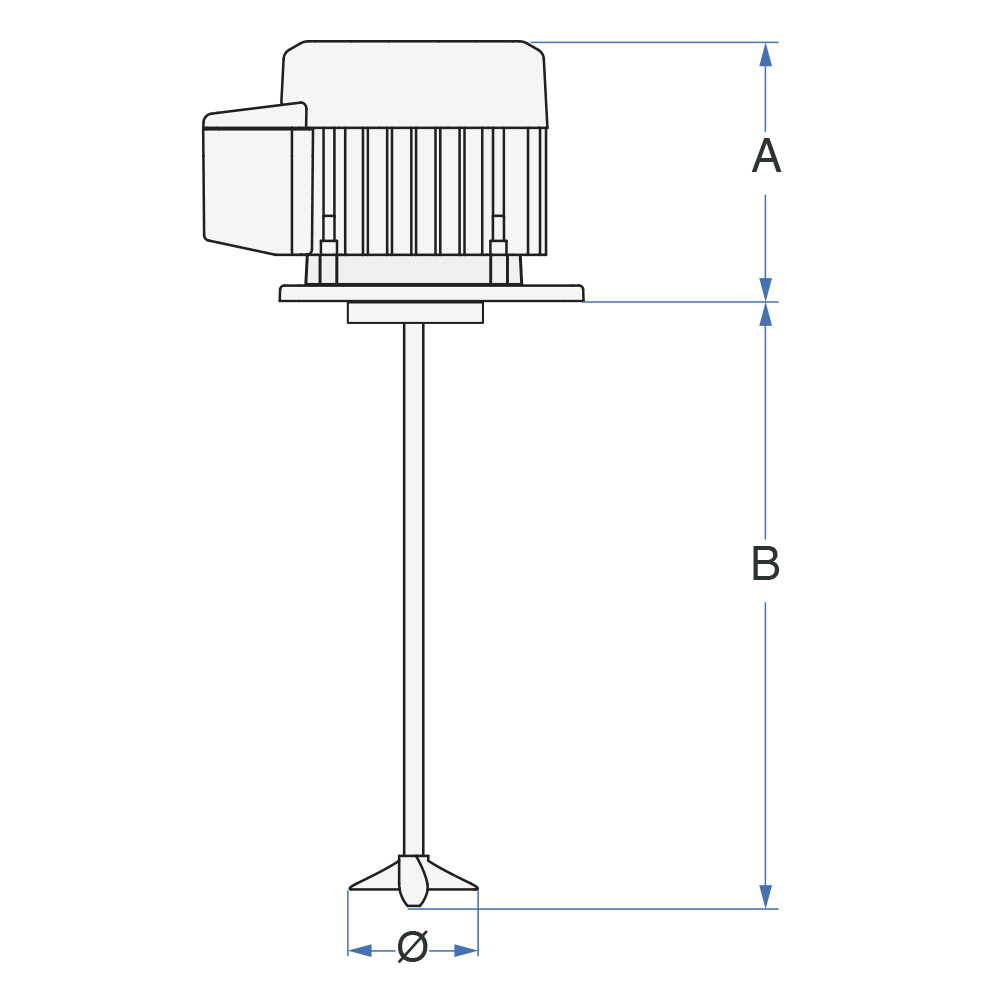

| TYPE | Volt | Hz | Amp | Watt | RPM | A | B | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|
| SK-20 | 115 | 60 | 0,40 | 41 | 3500 | 91 | 190/220 | 50x15° 2 Blades | 1,3 |
| SK-20 | 220 | 50-60 | 0,17 | 37 | 2850-3400 | 91 | 190/220 | 50x15° 2 Blades | 1,3 |
| SK-30 | 115 | 60 | 0,56 | 59 | 3500 | 105 | 236 | 66x15° 2 Blades | 1,7 |
| SK-30 | 220 | 60 | 0,25 | 59 | 3500 | 105 | 236 | 66x15° 2 Blades | 1,7 |
Available FIXING PLATES

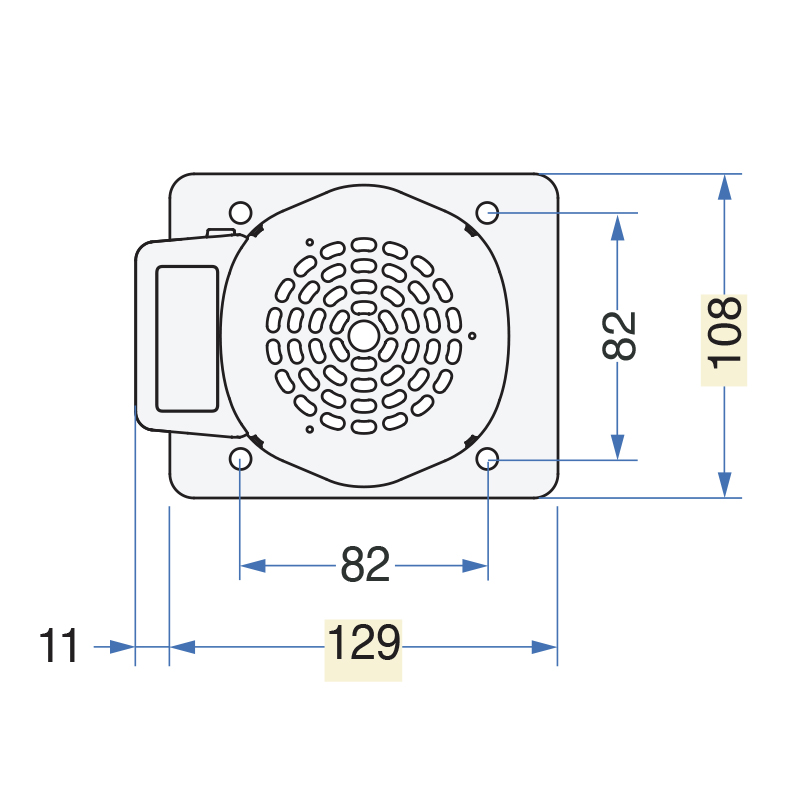

108×129 mm
Fixing plates

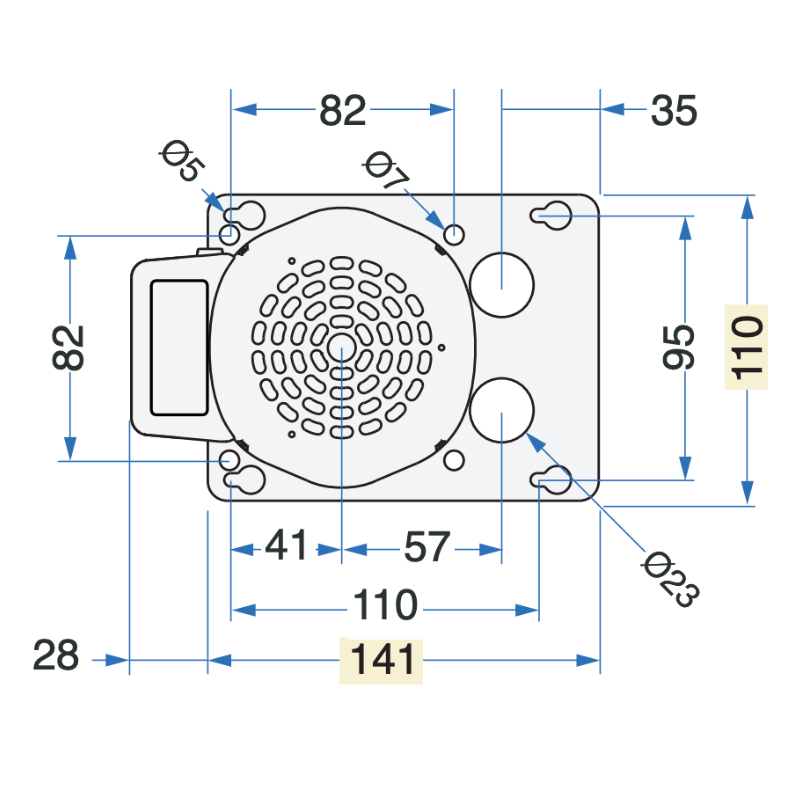

141×110 mm
Fixing plates

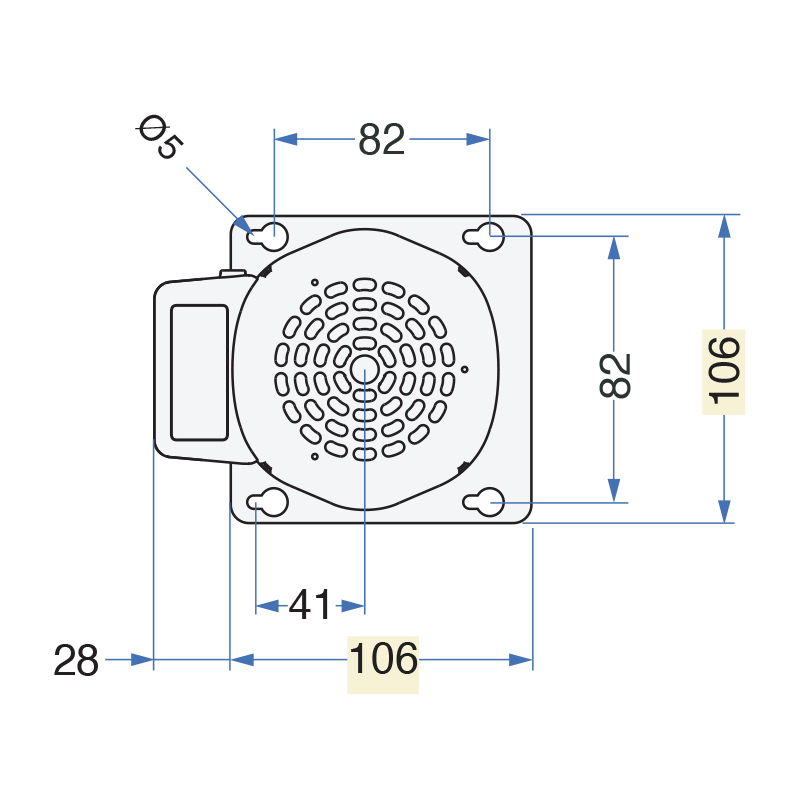

106×106 mm
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)

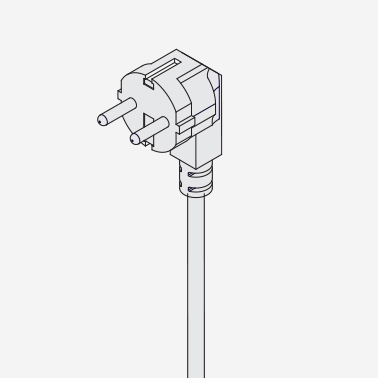

SCHUKO
More technical specifications:
Category: Classic AGITATOR.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 INOX steel.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled agitator with a suction speed of 3,1 m/s.
Operation: Power supply 115 or 220 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
