NRG series
NRG series is an agitator pump solution dedicated to heavy duty tasks. Its great performance deliver the power requested when using high viscosity coolants and grant a great agitation.

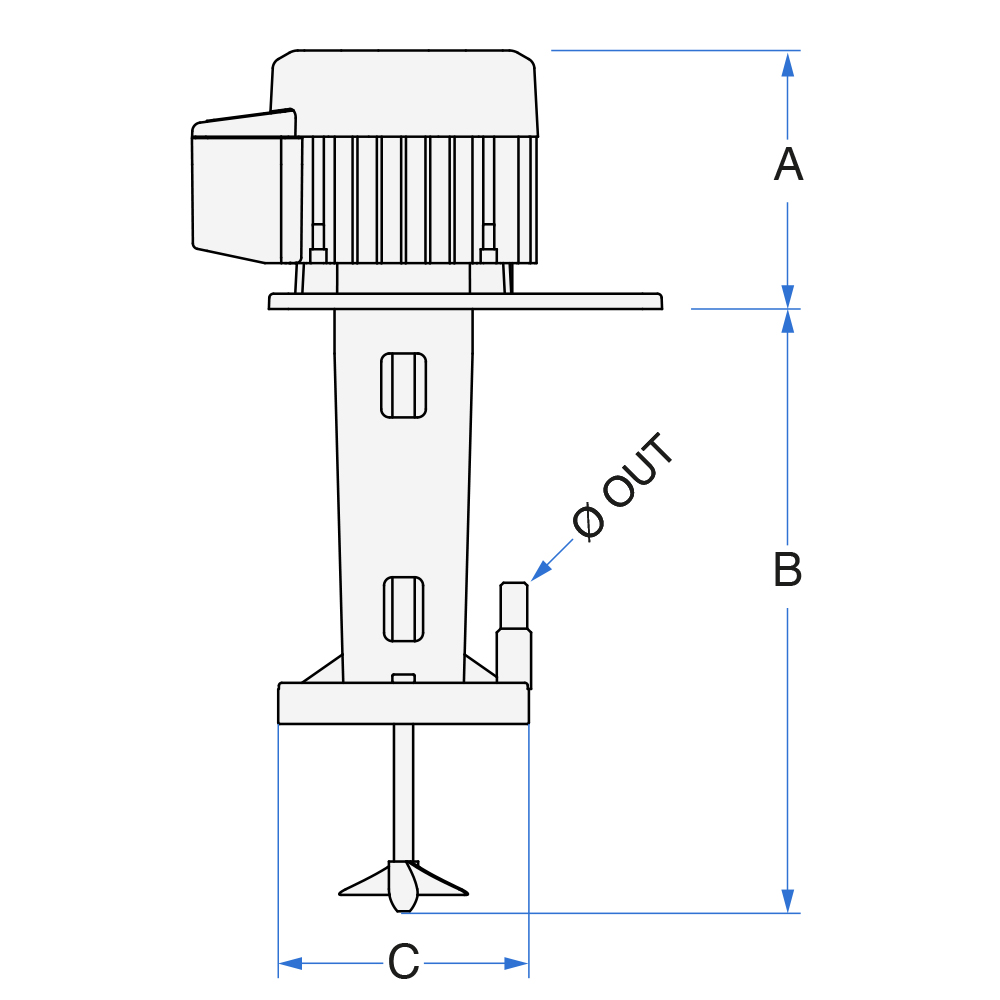

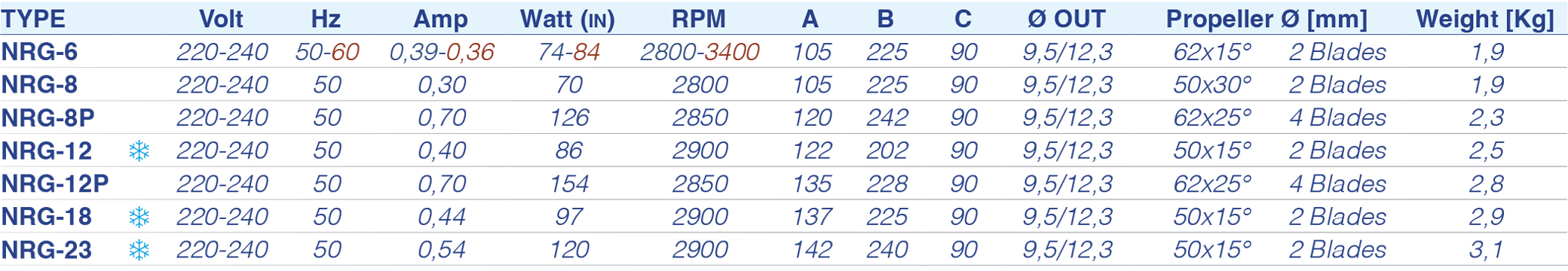

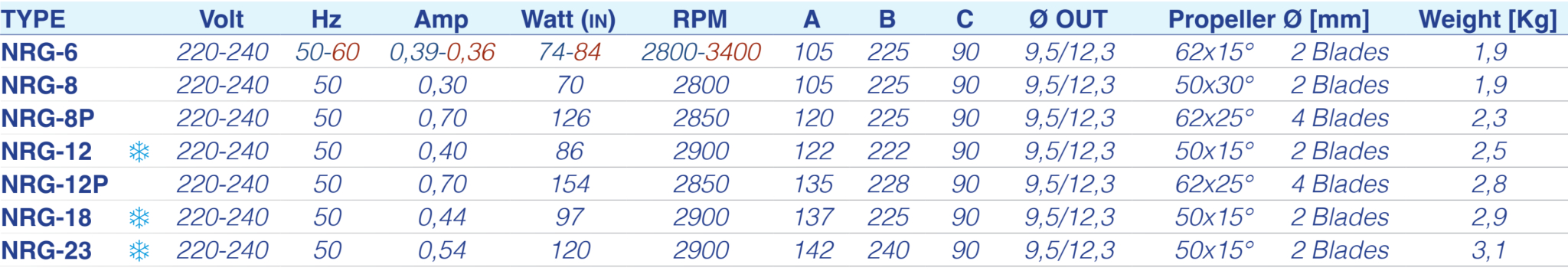

| TYPE | Volt | Hz | Amp | Watt (IN) | RPM | A | B | C | Ø OUT | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NRG-6 | 220-240 | 50-60 | 0,39-0,36 | 74-84 | 2800-3400 | 105 | 225 | 90 | 9,5/12,3 | 62x15° 2 Blades | 1,9 |
| NRG-8 | 220-240 | 50 | 0,30 | 70 | 2800 | 105 | 225 | 90 | 9,5/12,3 | 50x30° 2 Blades | 1,9 |
| NRG-8P | 220-240 | 50 | 0,70 | 126 | 2850 | 120 | 225 | 90 | 9,5/12,3 | 62x25° 4 Blades | 2,3 |
| NRG-12 ❄︎ | 220-240 | 50 | 0,40 | 86 | 2900 | 122 | 222 | 90 | 9,5/12,3 | 50x15° 2 Blades | 2,5 |
| NRG-12P | 220-240 | 50 | 0,70 | 154 | 2850 | 135 | 228 | 90 | 9,5/12,3 | 62x25° 4 Blades | 2,8 |
| NRG-18 ❄︎ | 220-240 | 50 | 0,44 | 97 | 2900 | 137 | 225 | 90 | 9,5/12,3 | 50x15° 2 Blades | 2,9 |
| NRG-23 ❄︎ | 220-240 | 50 | 0,54 | 120 | 2900 | 142 | 240 | 90 | 9,5/12,3 | 50x15° 2 Blades | 3,1 |
Available FIXING PLATES

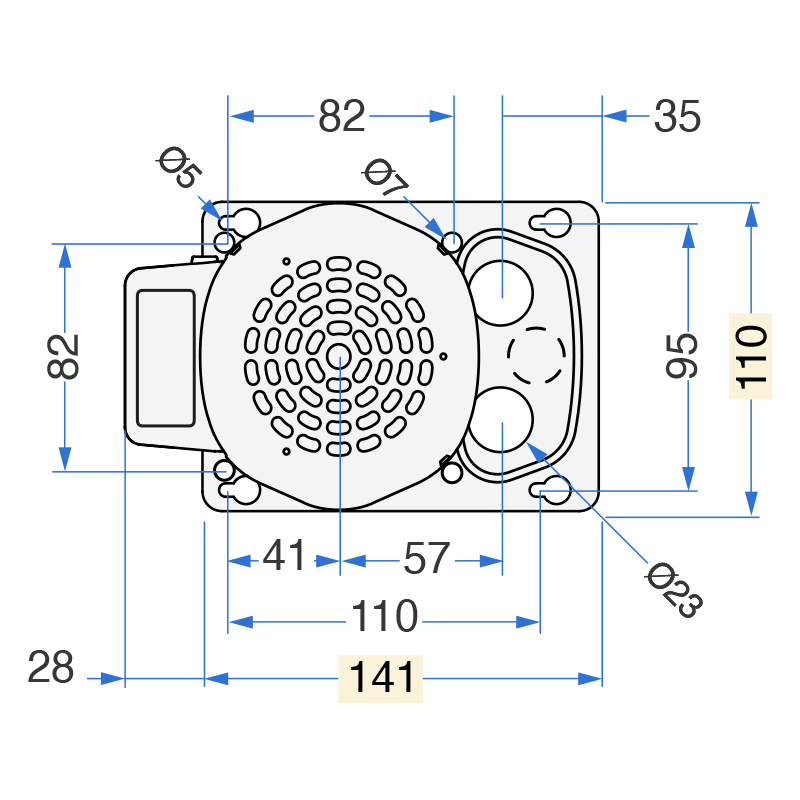

141×110 mm
Fixing plates

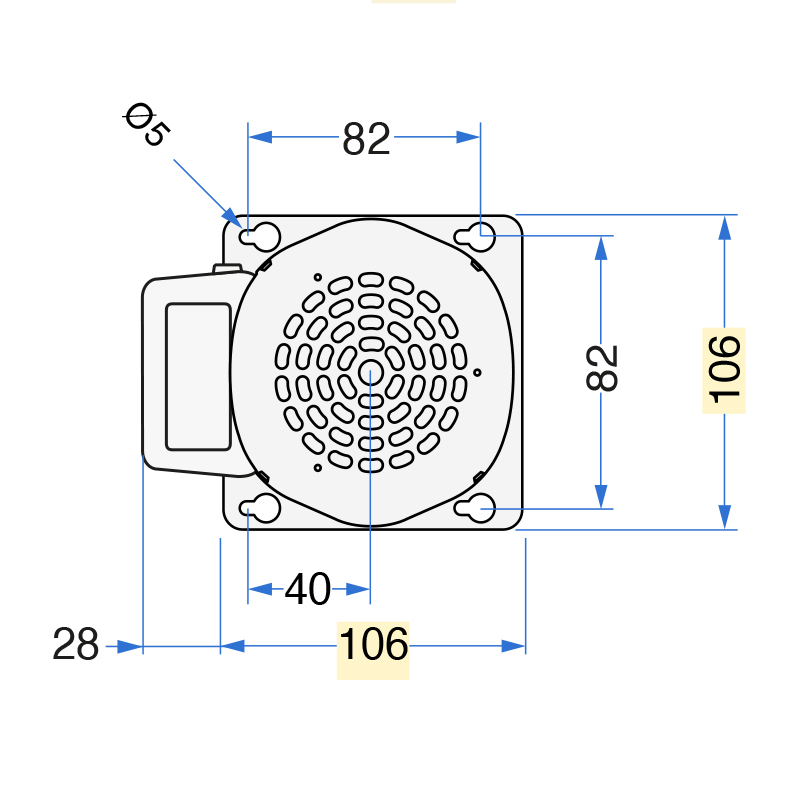

106×106 mm
Fixing plates

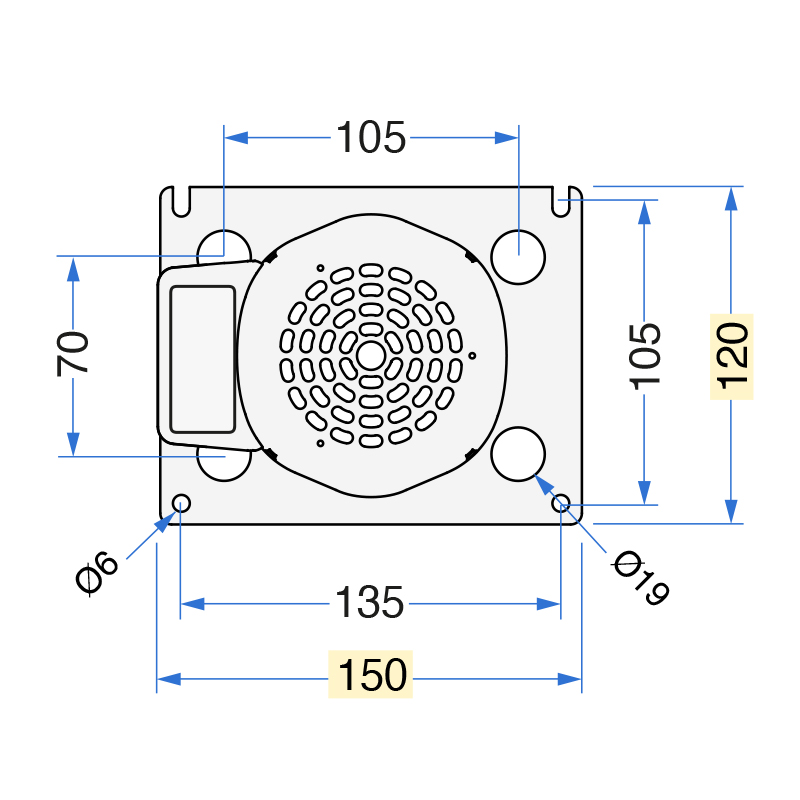

150×120 mm
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 2,2 m/s.
Water connection: Compatible with John Guest fittings.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. MAX viscosity 26 CP.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Italian PATENTED component installed inside. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
