MID SERIES
MID series offers an agitator pump solution that gives you the possibility to satisfy low budget requirements and reach worldwide markets.

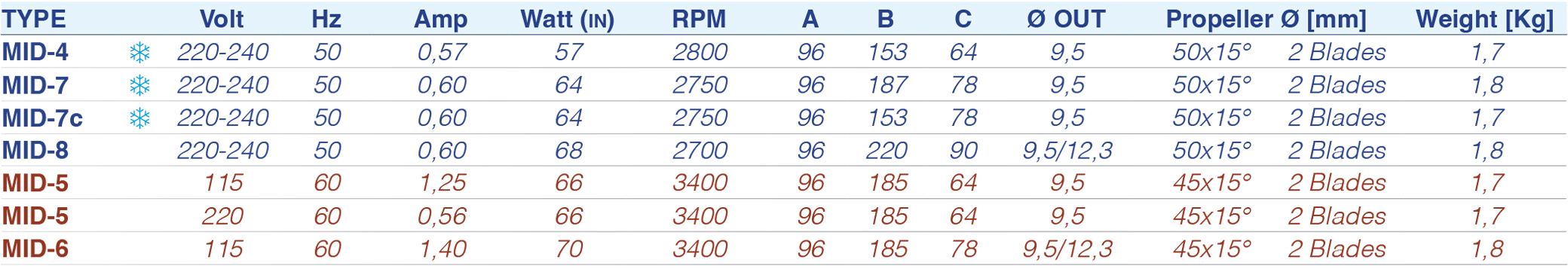

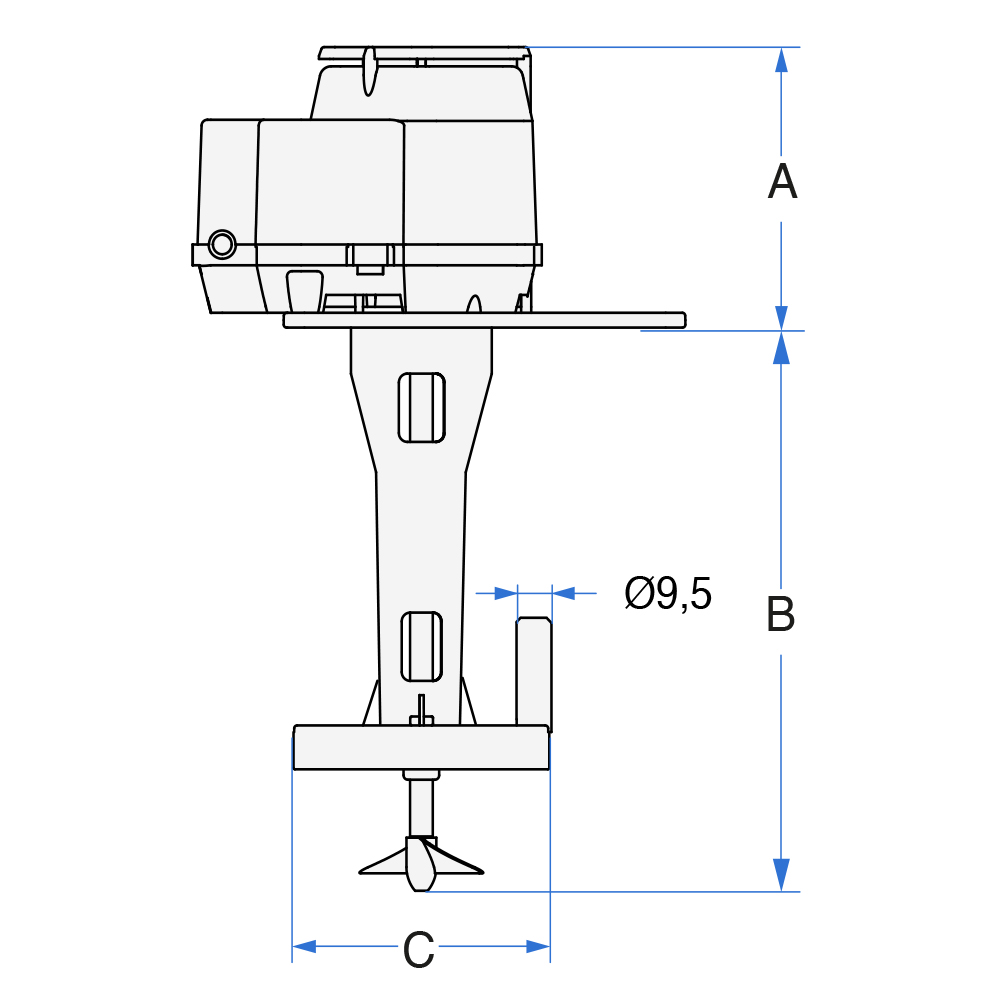

| TYPE | Volt | Hz | Amp | Watt (IN) | RPM | A | B | C | Ø OUT | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MID-4 ❄︎ | 220-240 | 50 | 0,57 | 57 | 2800 | 96 | 153 | 64 | 9,5 | 50x15° 2 Blades | 1,7 |
| MID-7 ❄︎ | 220-240 | 50 | 0,60 | 64 | 2750 | 96 | 187 | 78 | 9,5 | 50x15° 2 Blades | 1,8 |
| MID-7c ❄︎ | 220-240 | 50 | 0,60 | 64 | 2750 | 96 | 153 | 78 | 9,5 | 50x15° 2 Blades | 1,7 |
| MID-8 | 220-240 | 50 | 0,60 | 68 | 2700 | 96 | 220 | 90 | 9,5/12,3 | 50x15° 2 Blades | 1,8 |
| MID-5 | 115 | 60 | 1,25 | 66 | 3400 | 96 | 185 | 64 | 9,5 | 45x15° 2 Blades | 1,7 |
| MID-5 | 220 | 60 | 0,56 | 66 | 3400 | 96 | 185 | 64 | 9,5 | 45x15° 2 Blades | 1,7 |
| MID-6 | 115 | 60 | 1,40 | 70 | 3400 | 96 | 185 | 78 | 9,5/12,3 | 45x15° 2 Blades | 1,8 |
Available FIXING PLATES

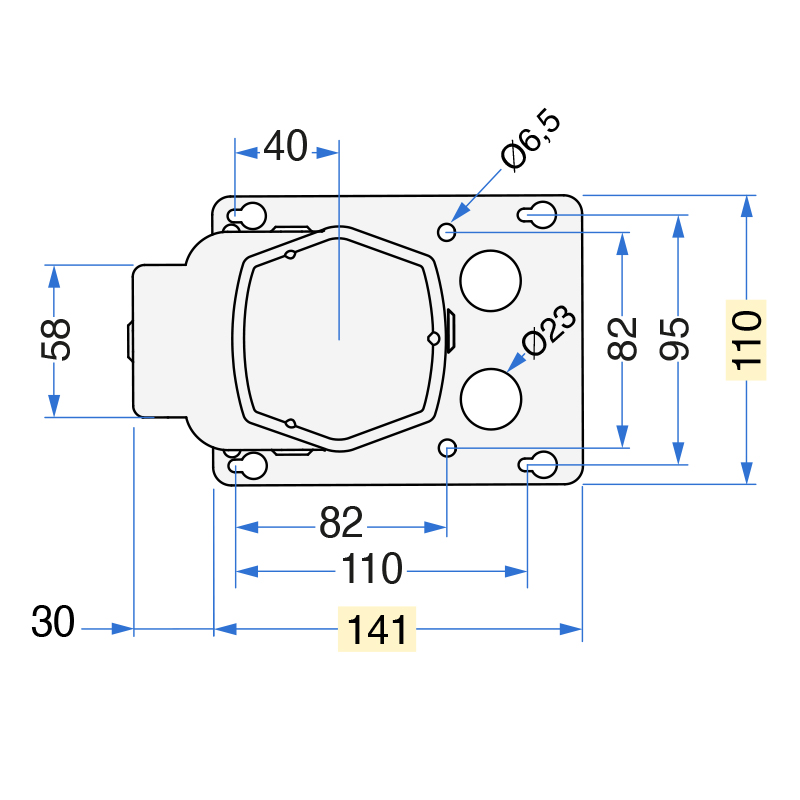

141×110 mm
Fixing plates
106×106 mm
Fixing plates

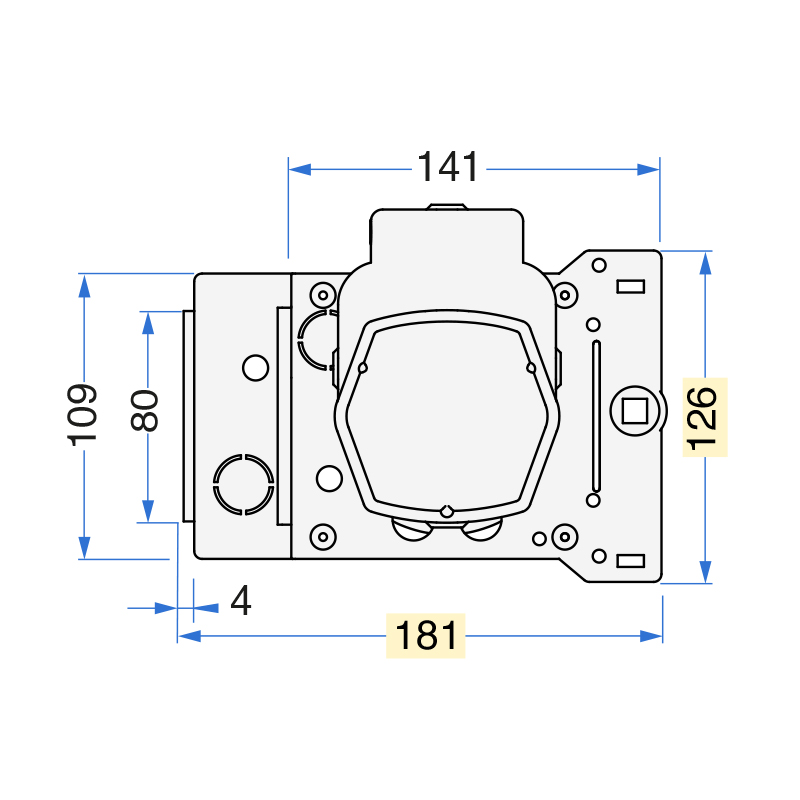

181×126 mm
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: PA66 30% glass fiber plastic shell motor housing.
Protection: IP 31 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 1,6 m/s.
Water connection: Compatible with John Guest fittings.
Operation: Power supply 115 or 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Italian PATENTED component. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
