MD-30
MD-30 agitator is a good-value solution for compact installations. It can be configured with powerful propellers granting an high agitation in the tank.

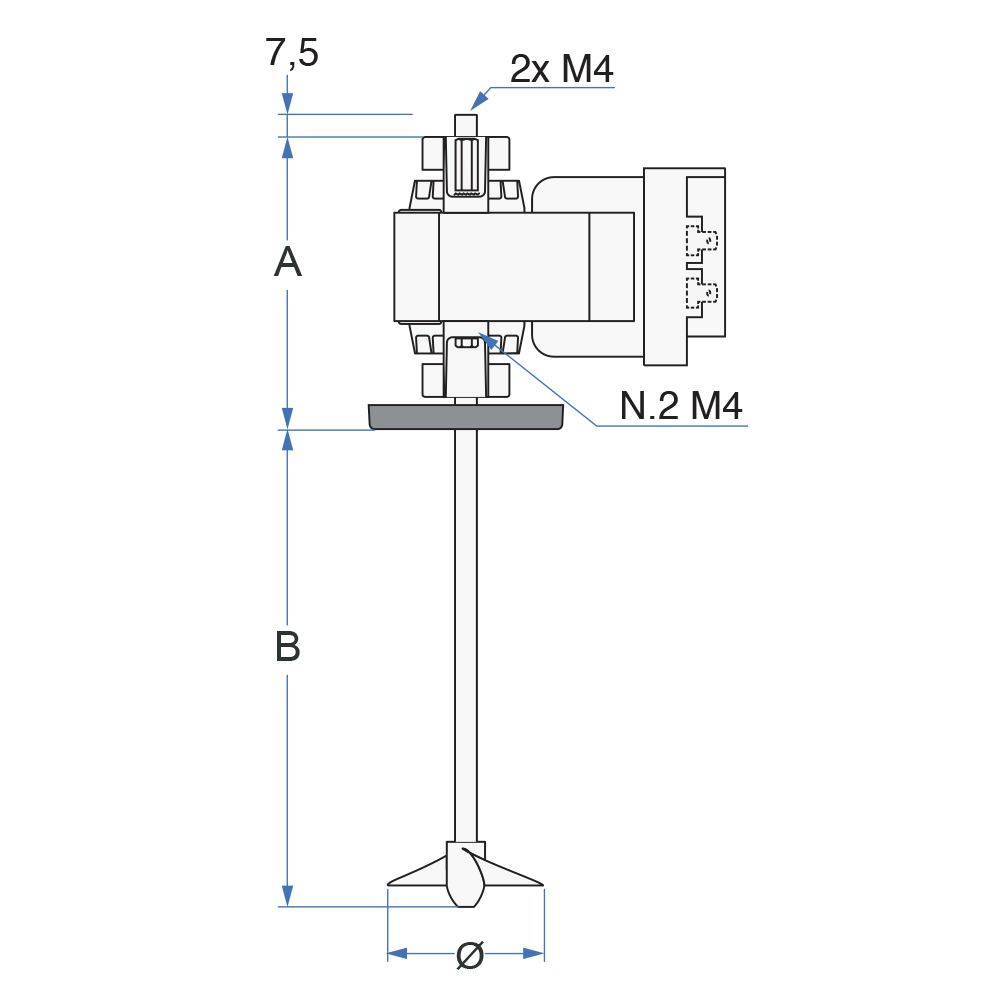

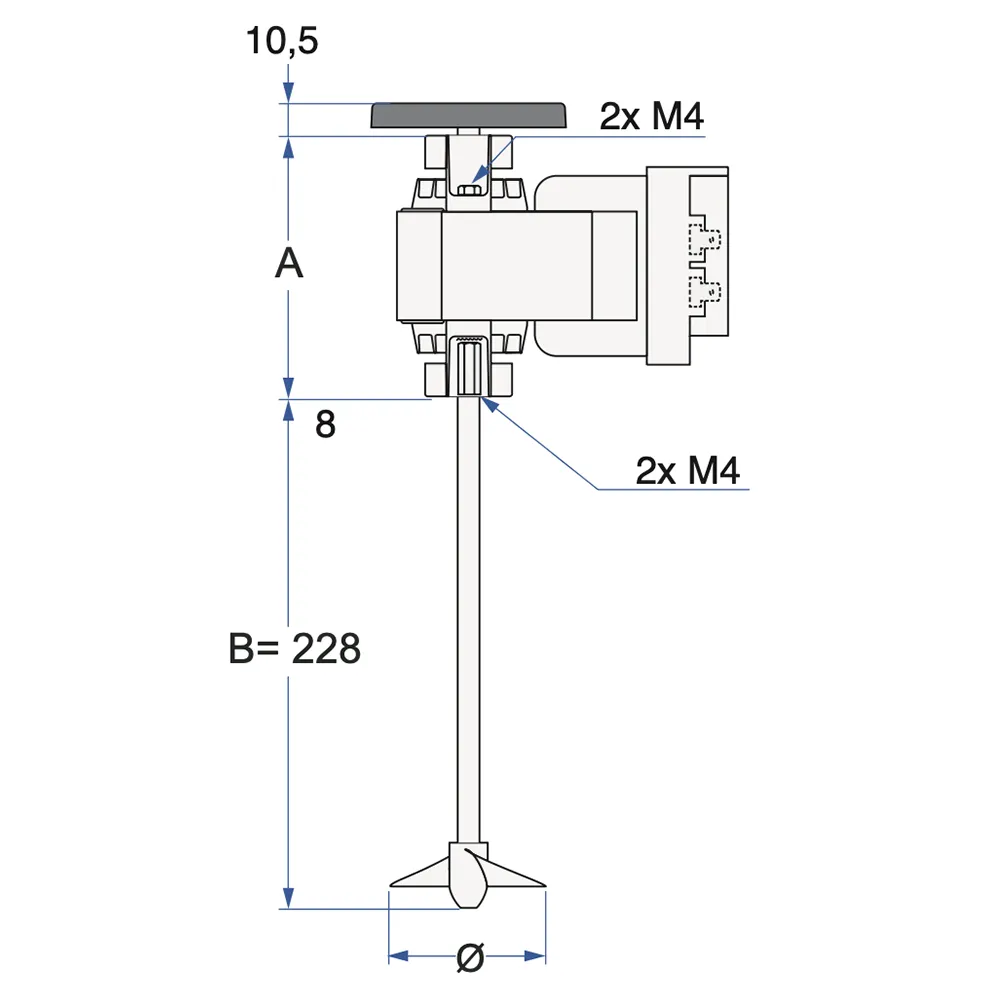

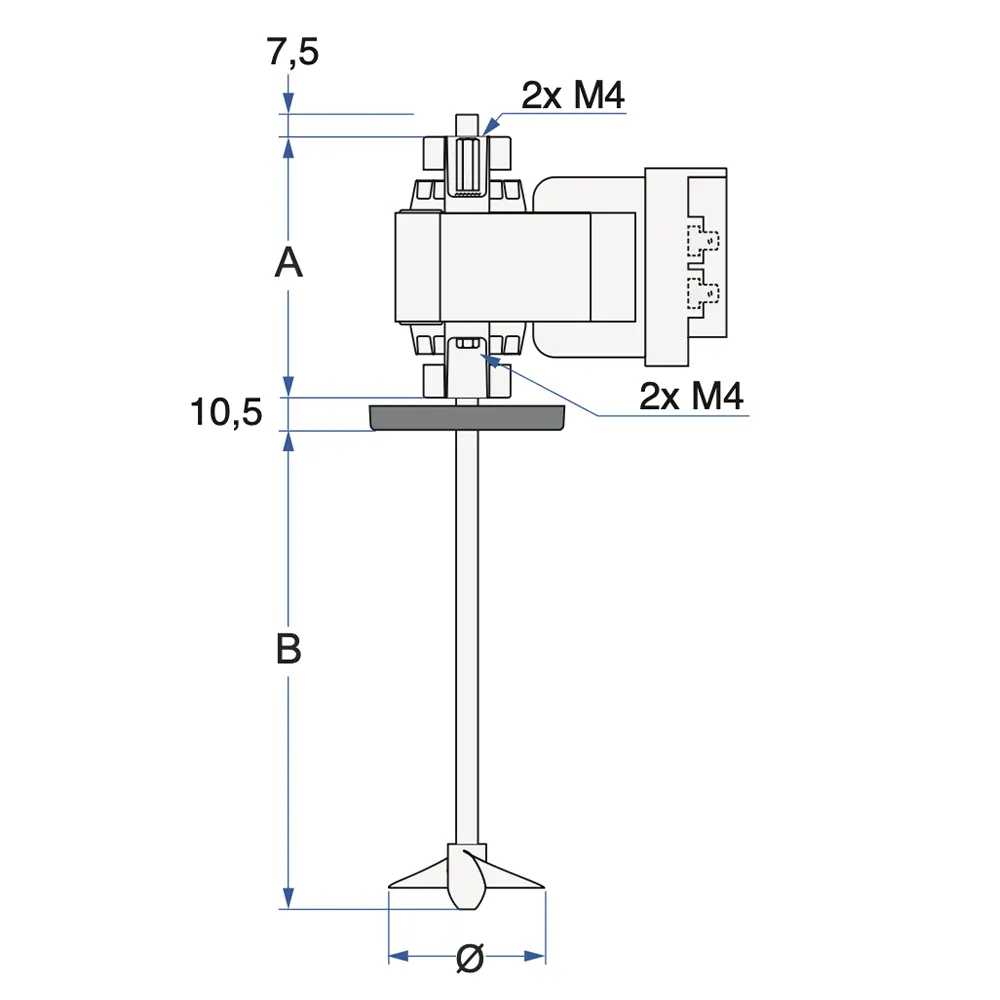

| TYPE | Volt | Hz | Amp | Watt | RPM | A | B | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|
| MD-30 | 230 | 50-60 | 0,55 | 45 | 2800-3400 | 80 | 147 | 50x15° 2 Blades | 1,4 |
| MD-30 | 230 | 50-60 | 0,48 | 50 | 2800-3400 | 80 | 153 | 62x15° 2 Blades | 1,4 |
| MD-30 | 230 | 50-60 | 0,55 | 45 | 2800-3400 | 80 | 214 | 50x15° 2 Blades | 1,4 |
| MD-30 | 230 | 50-60 | 0,48 | 50 | 2800-3400 | 80 | 220 | 62x15° 2 Blades | 1,4 |
| MD-30 | 115 | 60 | 0,95 | 50 | 3400 | 80 | 147 | 50x15° 2 Blades | 1,4 |

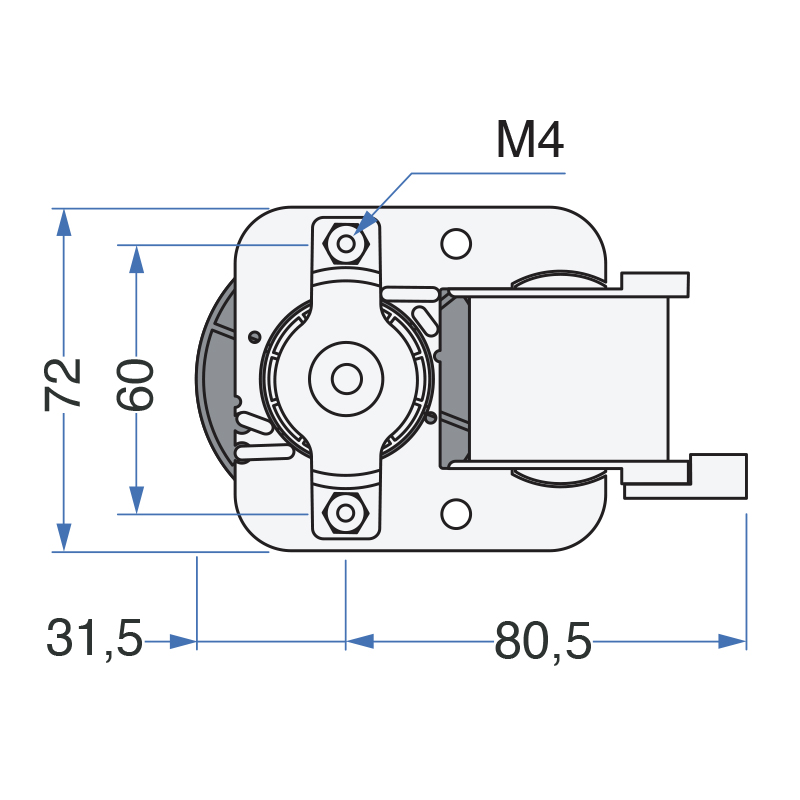

Available FIXING PLATES
Available CABLE types
BIPOLAR (without plug)
More technical specifications:
Category: Classic AGITATOR.
Windings: Single-phase motor. Insulation Class F.
Motor body: Shaded poles motor.
Protection: IP 00 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 INOX steel.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: N.A.
Cooling system: Air cooled agitator with a suction speed of 3,1 m/s.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Check machine’s requirements.
Note: Secure the motor at a min. distance from the water of 20 mm. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
