MD-25
MD-25 agitator series is a convenient solution for compact installations. Its reversed ventilation system adds hanging installation to the standard one. The 115V 60Hz version available on demand.

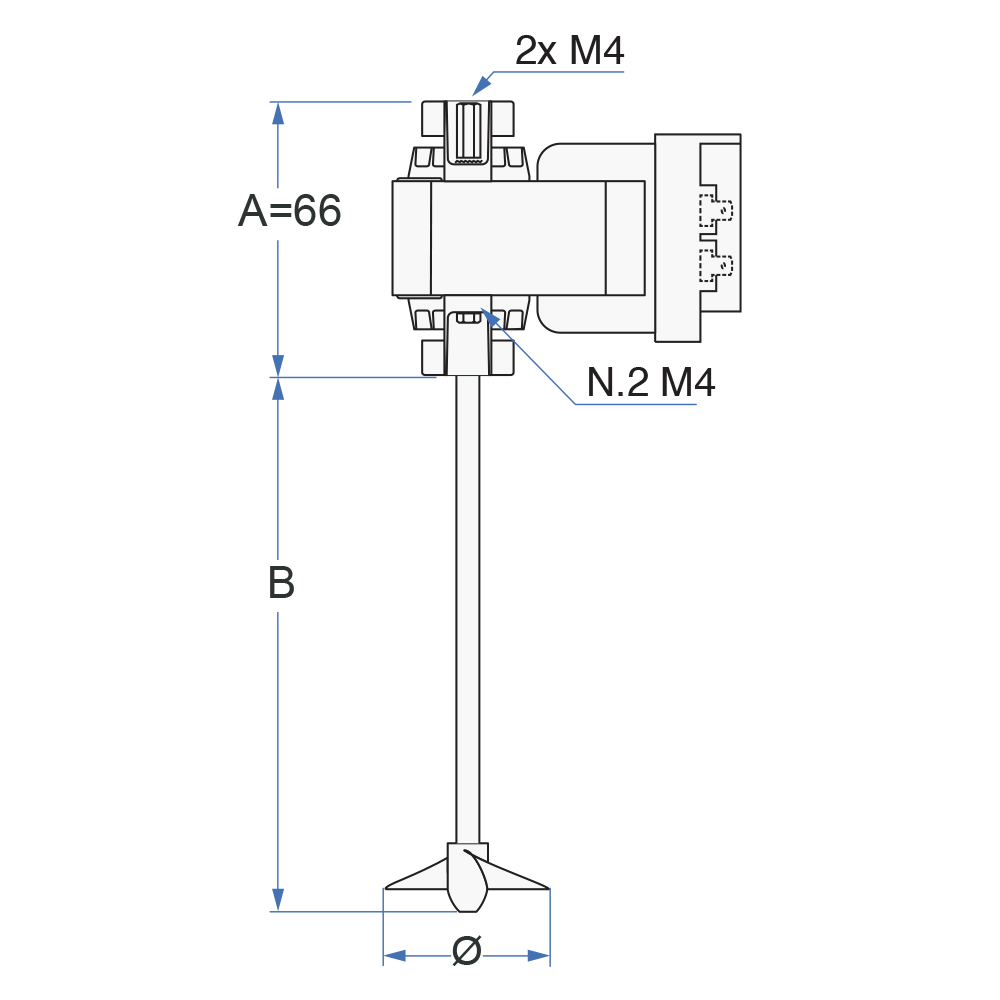

| TYPE | Volt | Hz | Amp | Watt | RPM | A | B | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|
| MD-25 * | 220-240 | 50-60 | 0,40 | 40 | 2830-3300 | 66 | 173/225 | 45x30° · 2 Blades | 1,2 |
| MD-25 * | 220-240 | 50-60 | 0,40 | 40 | 2830-3300 | 66 | 173/225 | 50x15° · 2 Blades | 1,2 |
| MD-25 * | 220-240 | 50 | 0,43 | 45 | 2750 | 66 | 179/231 | 62x15° · 2 Blades | 1,2 |
| MD-25 * | 115 | 60 | 0,65 | 39 | 3240 | 66 | 173/225 | 50x15° · 2 Blades | 1,4 |

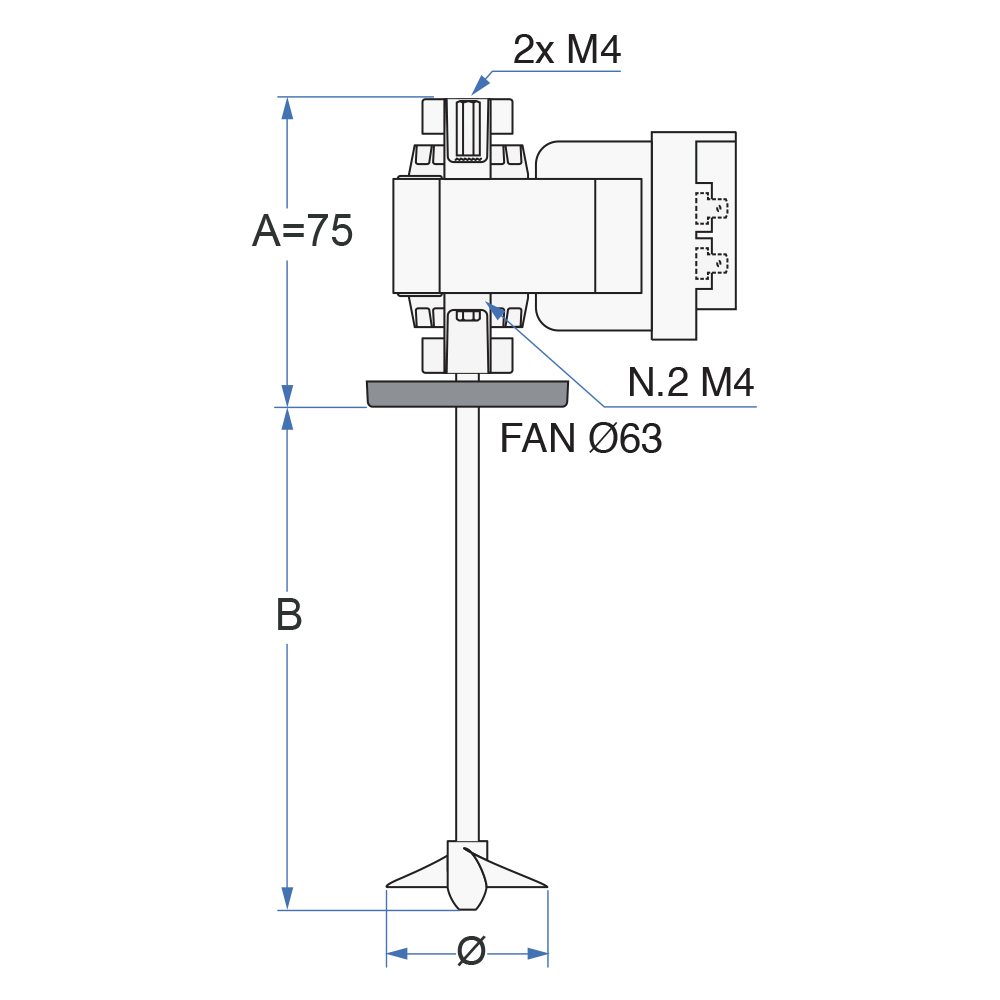

| MD-25 ** | 220-240 | 50-60 | 0,40 | 40 | 2830-3300 | 75 | 164/216 | 45x30° · 2 Blades | 1,2 |
| MD-25 ** | 220-240 | 50-60 | 0,40 | 40 | 2830-3300 | 75 | 164/216 | 50x15° · 2 Blades | 1,2 |
| MD-25 ** | 220-240 | 50 | 0,43 | 45 | 2750 | 75 | 170/220 | 62x15° · 2 Blades | 1,2 |
| MD-25 ** | 115 | 60 | 0,65 | 39 | 3240 | 75 | 164/210 | 50x15° · 2 Blades | 1,4 |

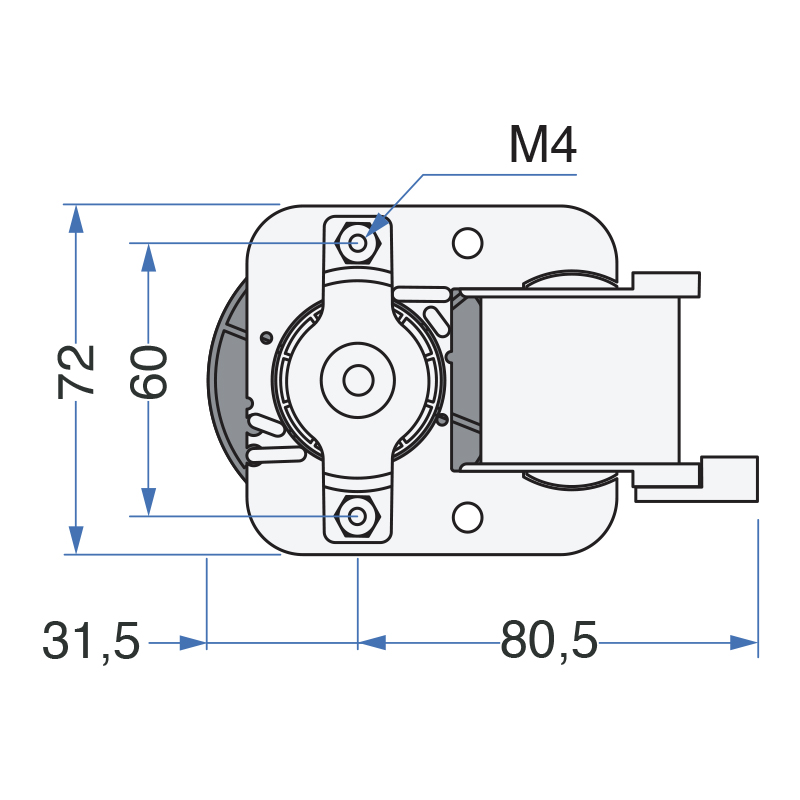

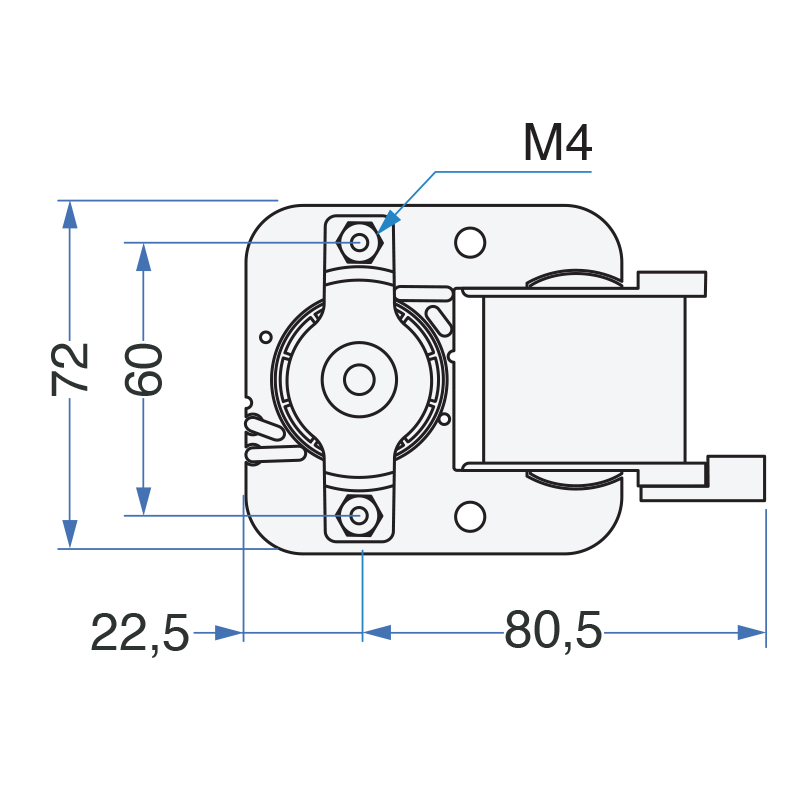

Available FIXING PLATES
Available CABLE types
BIPOLAR (without plug)
More technical specifications:
Category: Classic AGITATOR.
Windings: Single-phase motor. Insulation Class F.
Motor body: Shaded poles motor.
Protection: IP 00 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 INOX steel.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: N.A.
Cooling system: Air cooled pump with a suction speed of 3,1 m/s.
Operation: Power supply 115 or 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Check machine’s requirements.
Note: Secure the motor at a min. distance from the water of 20 mm. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
