DBS-M series

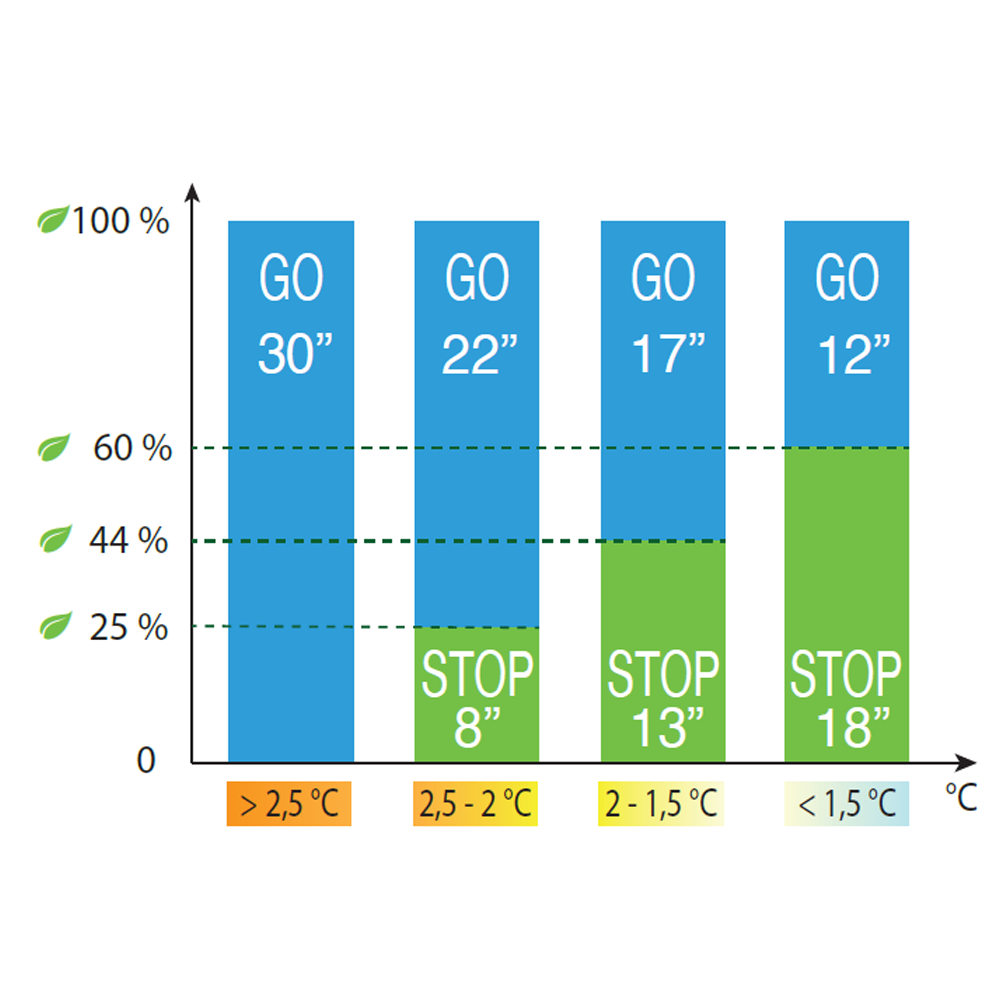

DBS-M series upgrades the standard DBS pump, adding a probe able to sense the tank’s temperature and adjust the motor’s speed. This saves the ice bank reducing the whole system energy consumption while ensuring a constant beverage quality.
Additional options available on demand.
Available FIXING PLATES
141×110 mm
Fixing plates
141×110 mm JG
Fixing plates
106×106 mm
Fixing plates
106×106 mm JG
Fixing plates

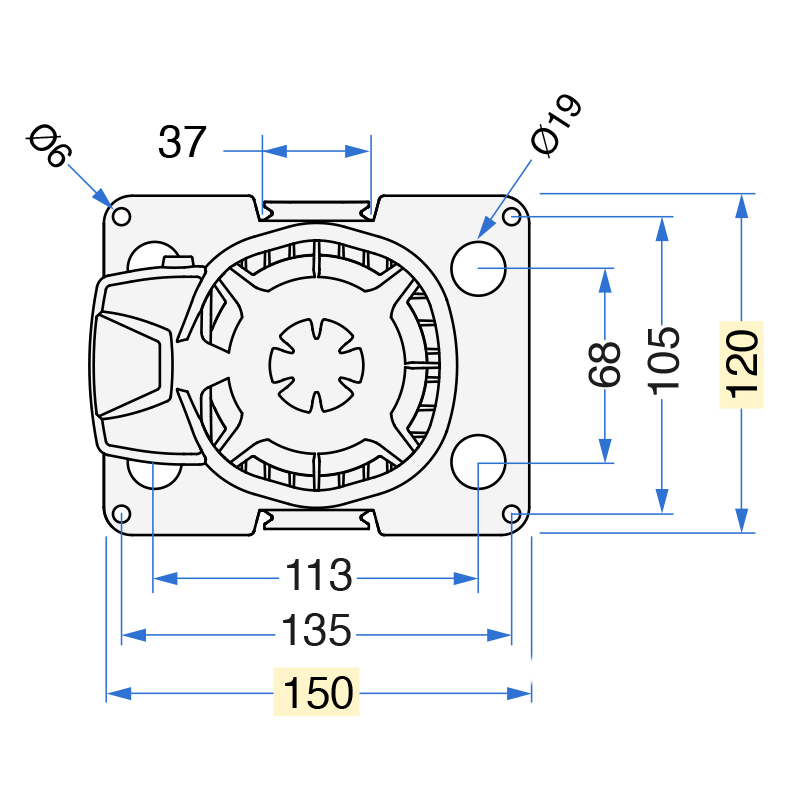

150×120 mm
Fixing plates
Available CABLE
IEC 370 “FELLER”
More technical specifications:

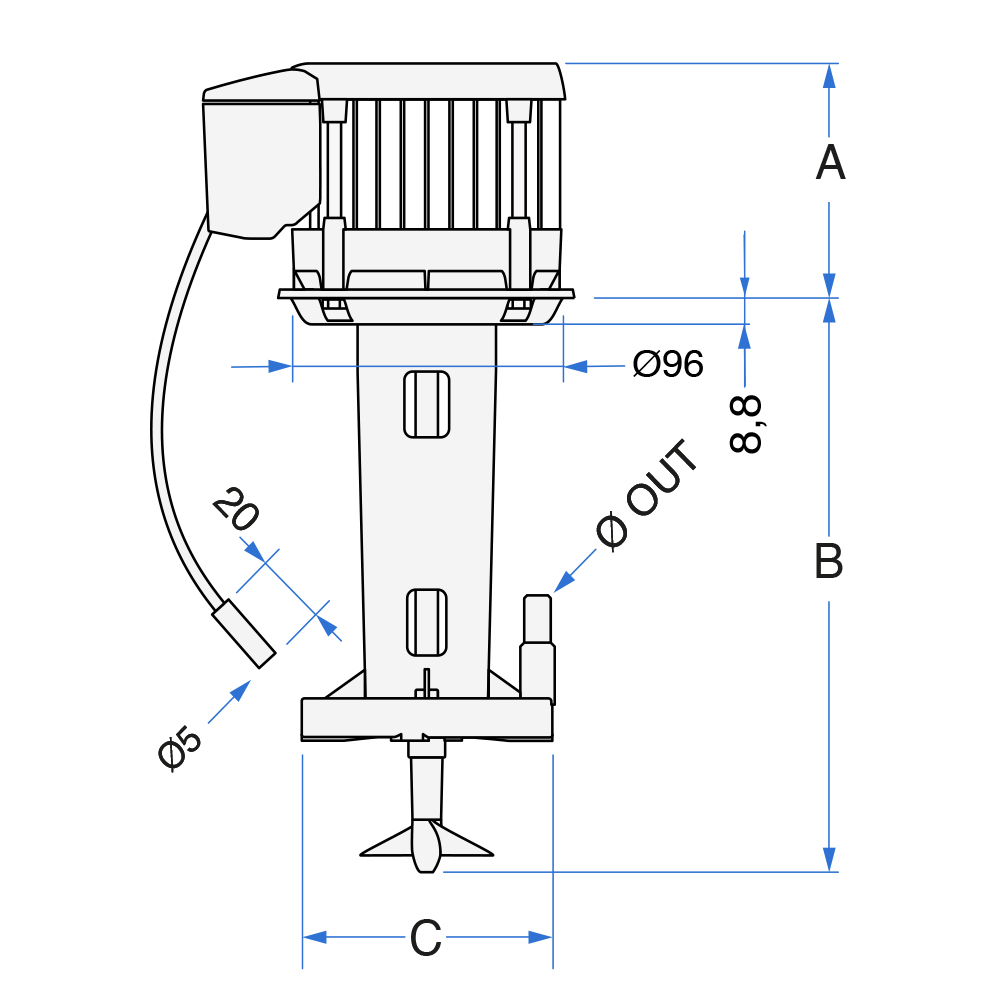

Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 3,1 m/s.
Water connection: Compatible with John Guest fittings.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: PATENTED device. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
