DBS SERIES
DBS series comes with an innovative ventilation system characterized by a reversed airflow (see picture). It can be installed at close contact with the cooler’s cover without extra space necessary. Its Energy Saving motor reduces pump’s energy consumption compared to the equivalent STR series.

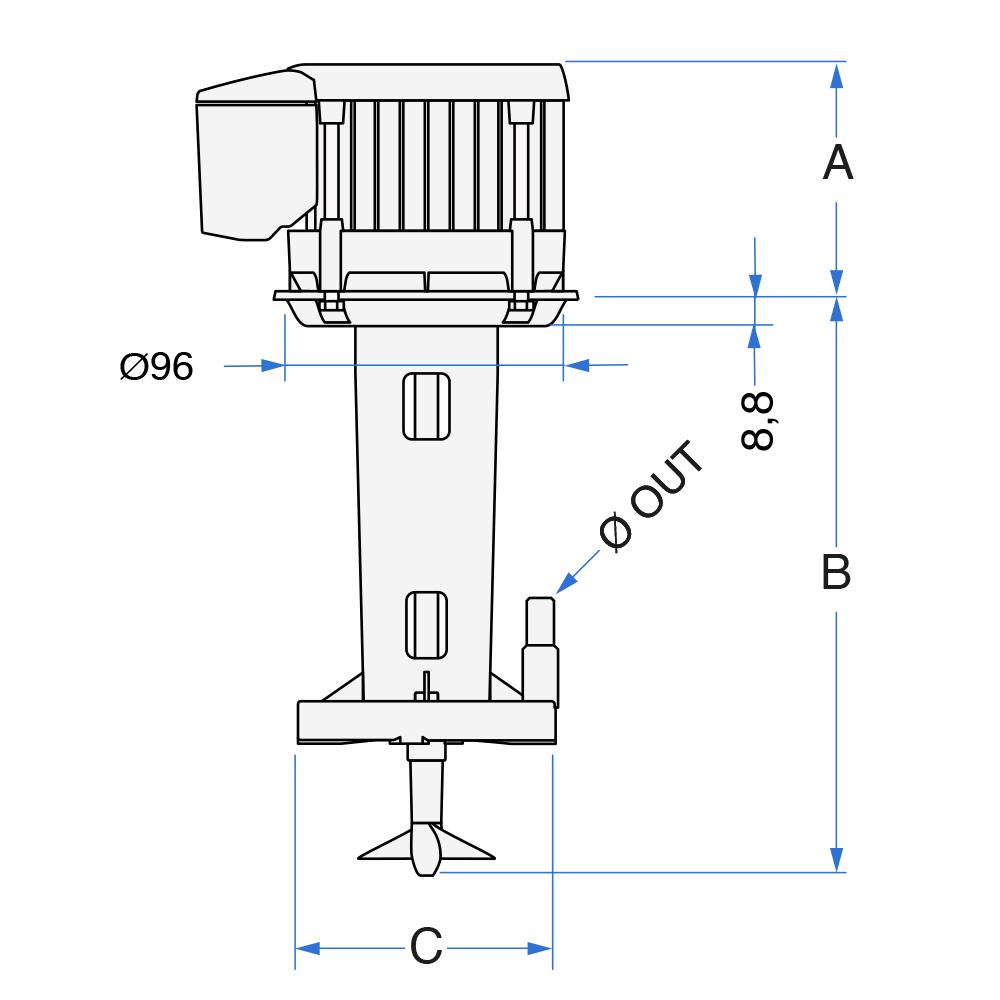

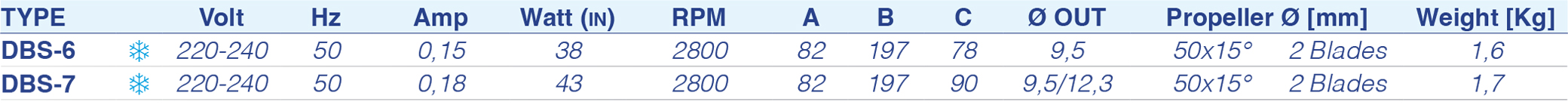

| TYPE | Volt | Hz | Amp | Watt (in) | RPM | A | B | C | Ø OUT | Propeller Ø [mm] | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DBS-6 ❄︎ | 220-240 | 50 | 0,15 | 38 | 2800 | 82 | 197 | 78 | 9,5 | 50x15° 2 Blades | 1,6 |
| DBS-7 ❄︎ | 220-240 | 50 | 0,18 | 43 | 2800 | 82 | 197 | 90 | 9,5/12,3 | 50x15° 2 Blades | 1,7 |
Available FIXING PLATES
141×110 mm
Fixing plates
141×110 mm JG
Fixing plates

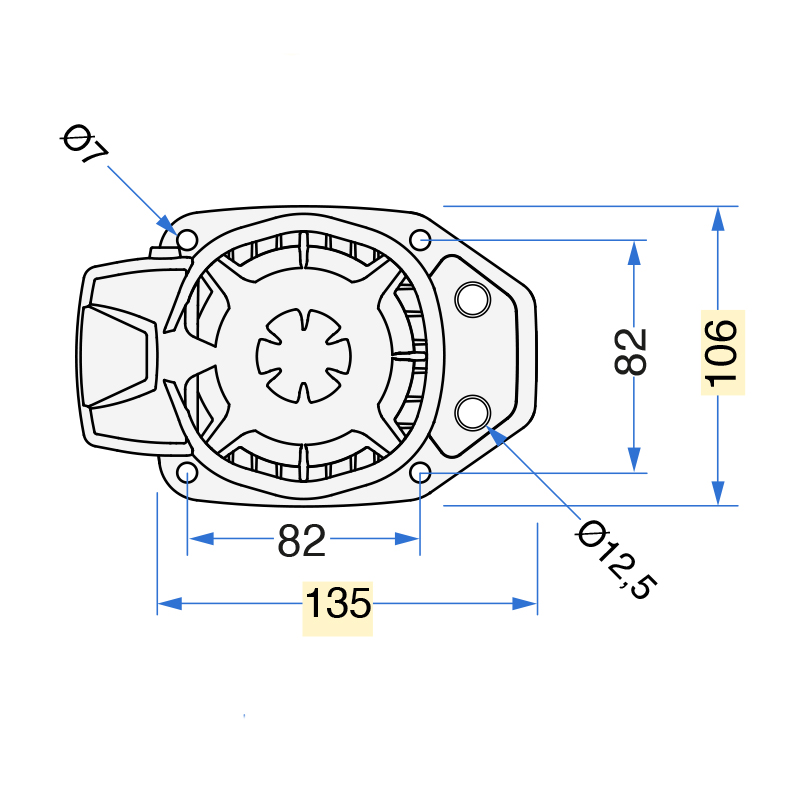

106×106 mm
Fixing plates
106×106 mm JG
Fixing plates
150×120 mm
Fixing plates
Available CABLE types
BIPOLAR (without plug)
C14 (IEC 60320)
FASTON PLUG
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm (12 mm optional) NSK /SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 3,1 m/s.
Water connection: Compatible with John Guest fittings.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: PATENTED device. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
