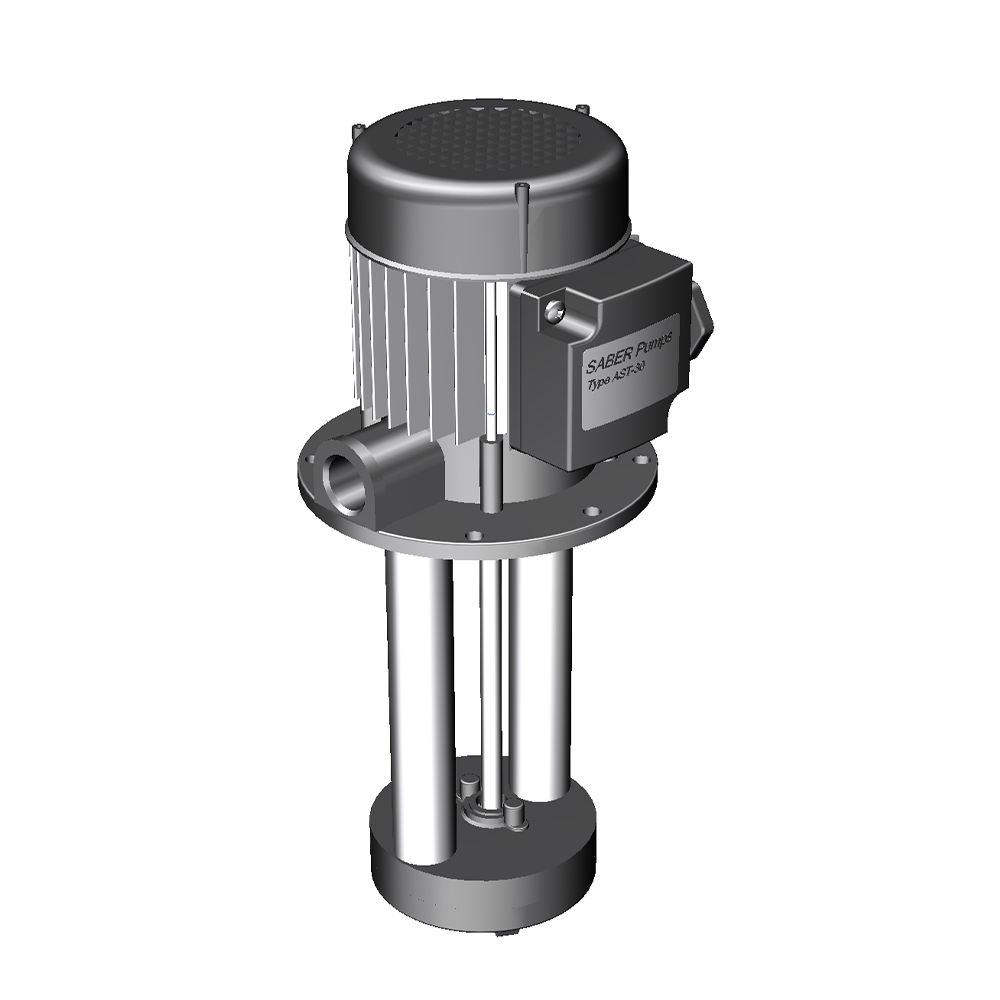

ASM series
The ASM series uses single-phase motors and have been specifically designed for machine tools, ceramic and glass process machinery, and for all those cases in which liquids or coolants must be moved.

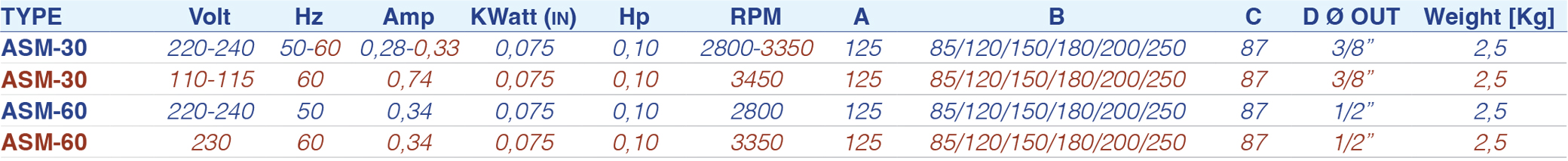

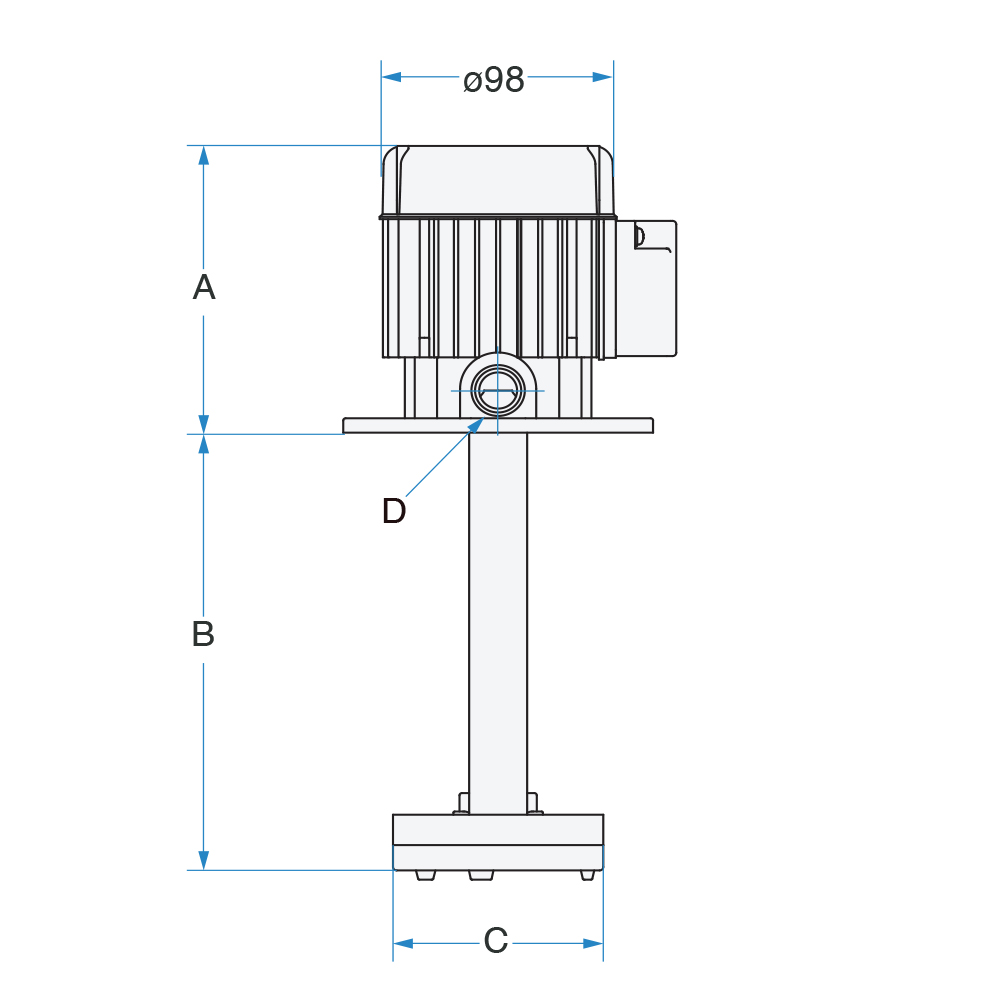

| TYPE | Volt | Hz | Amp | KWat (IN) | Hp | RPM | A | B | C | D Ø OUT | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASM-30 | 220-240 | 50-60 | 0,28-0,33 | 0,075 | 0,10 | 2800-3350 | 125 | 85/120/150/180/200/250 | 87 | 3/8" | 2,5 |
| ASM-30 | 110-115 | 60 | 0,74 | 0,075 | 0,10 | 3450 | 125 | 85/120/150/180/200/250 | 87 | 3/8" | 2,5 |
| ASM-60 | 220-240 | 50 | 0,34 | 0,075 | 0,10 | 2800 | 125 | 85/120/150/180/200/250 | 87 | 1/2" | 2,5 |
| ASM-60 | 230 | 60 | 0,34 | 0,075 | 0,10 | 3350 | 125 | 85/120/150/180/200/250 | 87 | 1/2" | 2,5 |

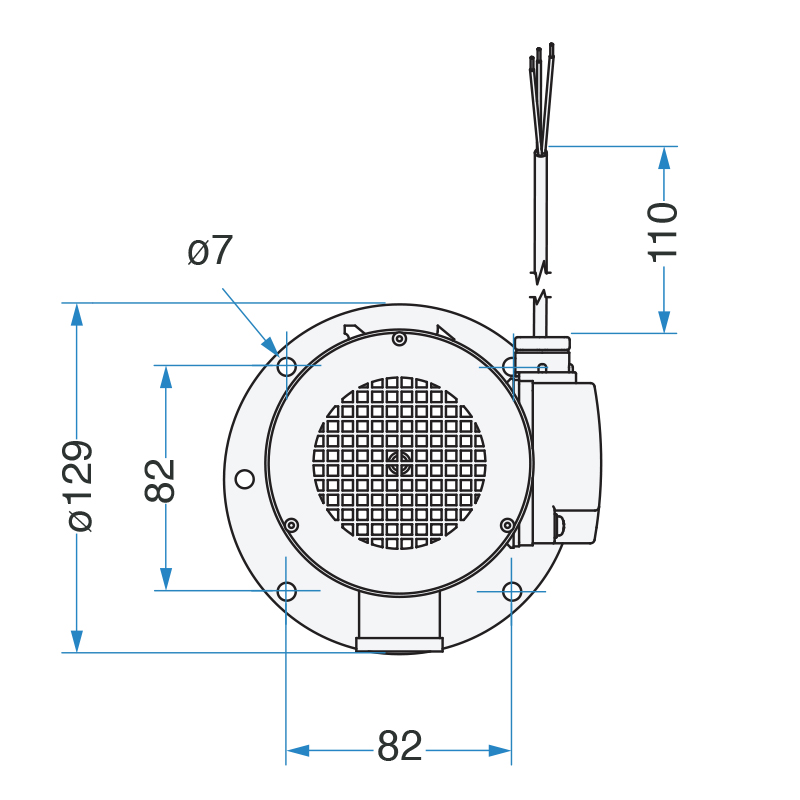

Available FIXING PLATES
⌀ 129
Fixing plates
Available CABLE types
BIPOLAR (without plug)
More technical specifications:
Category: CENTRIFUGAL-PUMP with immersed vertical axis.
Windings: Single-phase motor with Class F winding.
Motor body: Extruded aluminium casing.
Protection: IP 54 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 stainless steel shaft.
Connections: Motor power cord 1.100 mm long without plug.
Immersion: Motor-driven pump with immersed vertical axis without clamping devices.

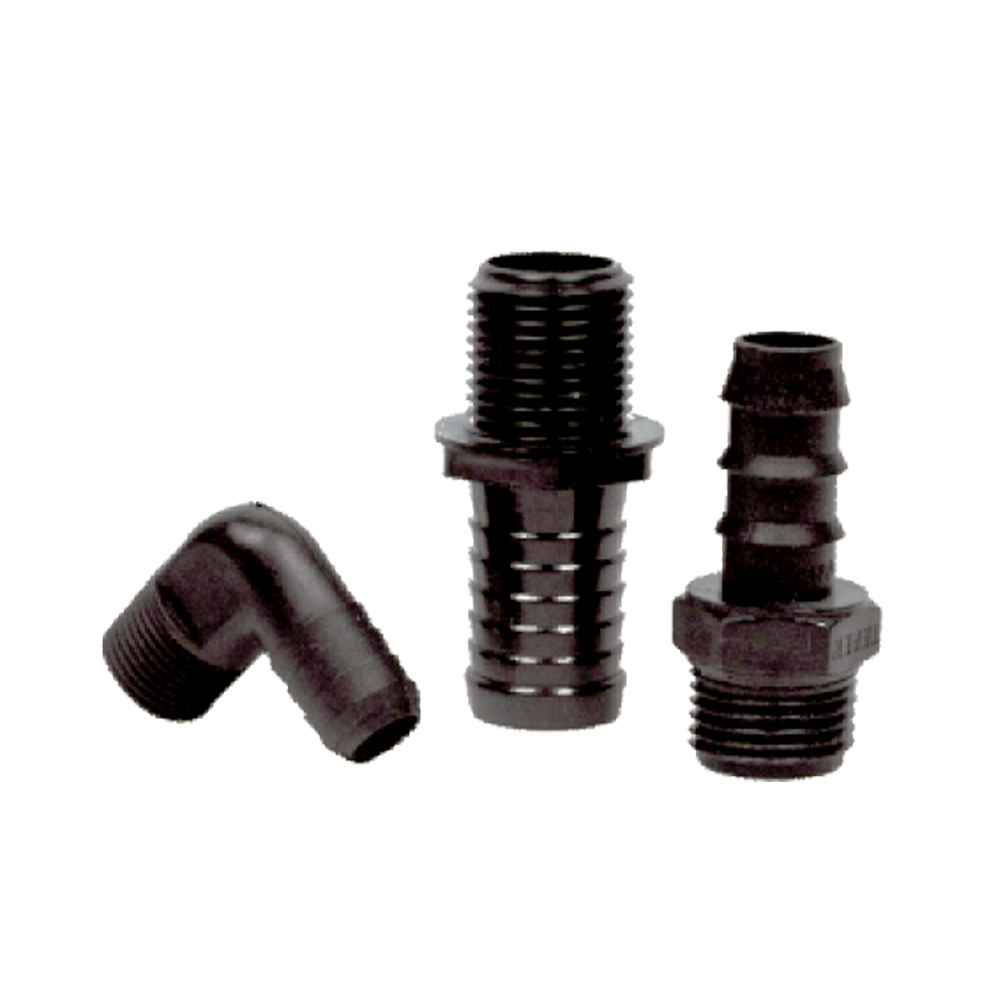

Optional: Upon request the pumps can be assembled with fastening parts in stainless steel or anti-oxidant materials (see picture no. 2).
Power supply: Voltages and frequencies according to customer’s specific requirements can be supplied.
Note: PATENTED device. Read the instruction booklet for correct set up and use.
Designed for industrial use with CE certified cooler machinery only. Not intended for food contact.
